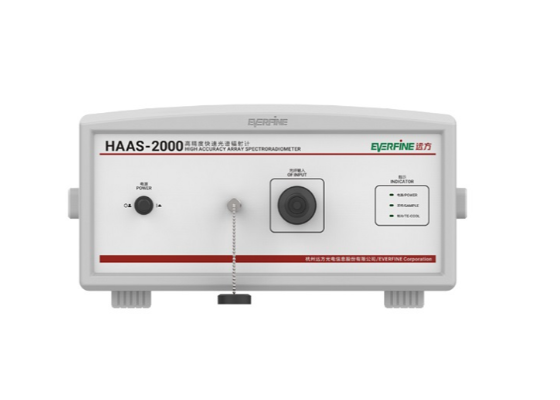

HAAS-2000IR High Accuracy Array Spectroradiometer
High accuracy infrared spectrum and radiation measurement

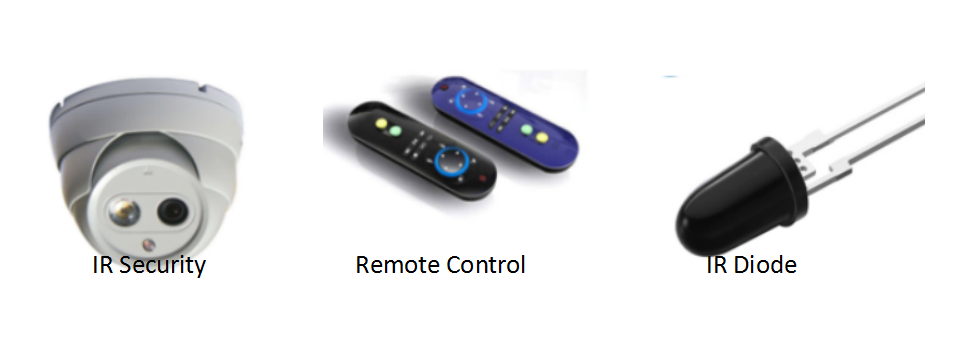

Typical application scenarios

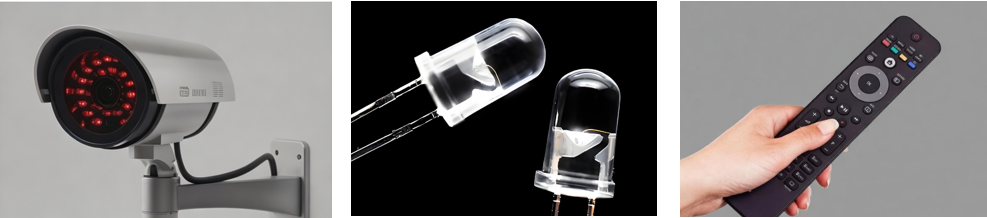

HAAS-2000 IR High Accuracy Array Spectroradiometer, covering infrared LED applications (such as: remote control, security monitoring, intelligent home, etc.) of multiple bands, the instrument has extremely fast measurement speed, can match the integral ball test accurate test infrared LED spectrum, peak wavelength, half wave width, radiation flux, light power parameters, and can cooperate with ALI intensity test device test infrared LED radiation intensity.
Main characteristics
1. Focus on Infrared Spectrum Testing
Ultra-low noise detector using scientific grade low stray light dispersion unit and constant temperature refrigeration, especially suitable for the spectrum and radiation high performance measurement of infrared emission devices such as infrared LED.
2. Millisecond Test Speed and High Repeatability and Stability
The entire spectral range can be accurately measured in a very short measurement time. The instrument does not have a scanning mechanism for mechanical motion, and the only temperature factor that will affect it is also controlled to the level of-10℃± 0.05℃ by the thermostatic refrigeration technology, and the measurement repeatability and stability are extremely high.

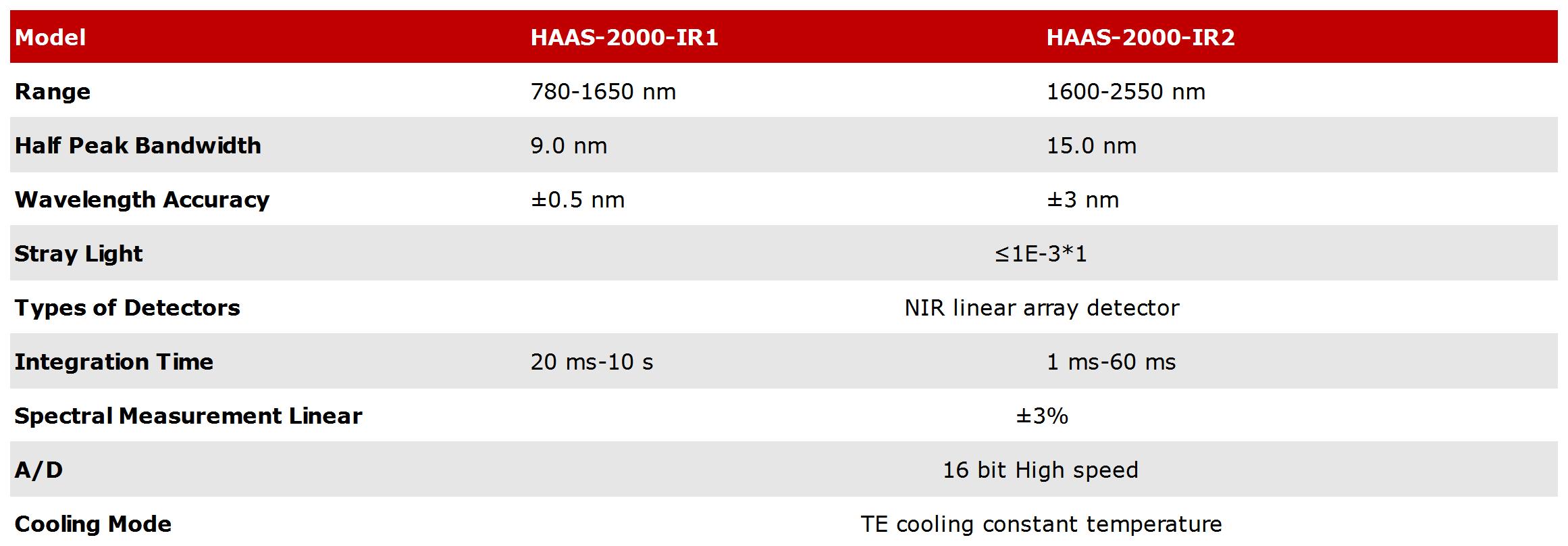

Technical Specifications
