POPA-2000 Projector Optical Analyzer System
The measurement points can be placed flexibly to meet the standards.
Spectroscopic measurement,illuminance and color measurement of high accuracy, good consistency.

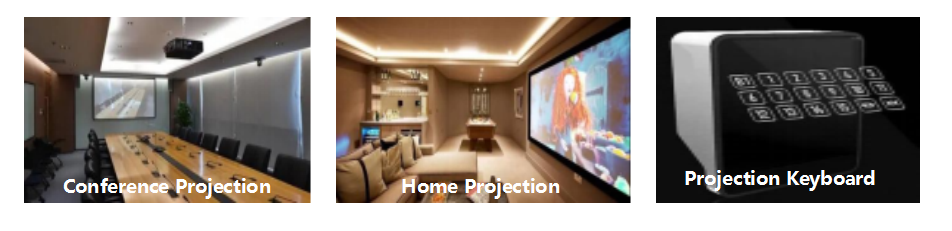

Typical application scenarios
POPA-2000 is mainly used to analyze the illuminance, chromaticity coordinate, Color Temperature, Color Rendering Index: Ra, Spectral Power Distribution P(λ) and other photometric and chromaticity uniformity parameters of 9 test points projected by the projector in a special plane
Main characteristics
1.Multiple patented technologies
Using spectral method to measure illuminance and chromaticity parameters, there is no V(λ) mismatching error, and the measurement accuracy is extremely high
2.Multi-channel synchronous testing
Has strong data processing capabilities, while analyzing and processing the illuminance and chromaticity of 9 channels.
3.Multiple measurement parameters
Through spectral measurement, color parameters such as color temperature and color rendering index can be evaluated to better evaluate the color reproduction effect of the projector.
4.Software operation
The software can set different threshold standards for projectors with different requirements, and can also call different threshold standards at will.
Technical Specifications
| Model | POPA-2000 |
| Measurement Accuracy | 3% of reading + 1 digit |
| Simultaneous Illuminance Test Range | 0.01 lx～5000 lx |
| Wavelength Test Range | 380 nm-780 nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Resolution | 0.6 nm |
| Stray Light | < 0.3% |
| Chromaticity Coordinate Accuracy | ±0.001（relative to standard light sources with stability better than ±0.0001 and NIM traceability） |
| Color Temperature Range | 1000K~100000K |
