SL-1000 Shadowless Lamp Light Color Test System
High Level of Stray Light Control and Wavelength Accuracy
Test at the Maximum Strength Point to Meet the Test Standard Requirements of Shadowless Lamp

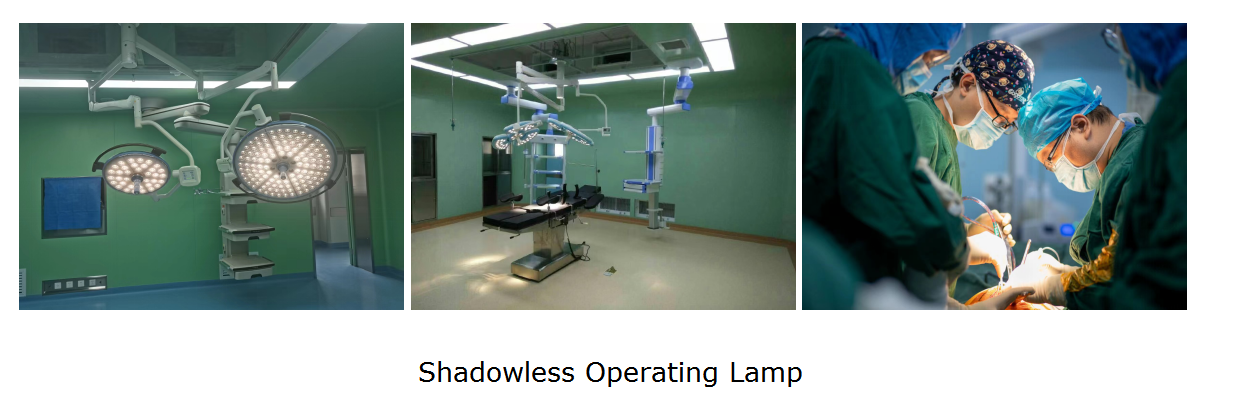

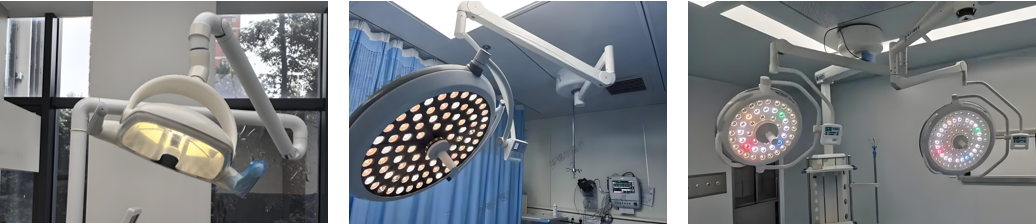

Typical application scenarios
The SL-1000 is a professional light color test system designed for operating shadowless lamps, which mainly includes UV-visible-near-infrared spectrum analysis system, quartz fiber, special sampler for shadowless lamps, high-precision photometric detector with light sensitive surface meeting the standard requirements, optical standard calibration system, and special test software. It is mainly used for measuring the irradiance, illuminance, spectral power distribution, color coordinates, color rendering index and other light chromaticity of the operating shadowless lamp, referring to the safety requirements of the operating shadowless lamp and diagnostic lighting standards such as YY0627-2008.
Main characteristics
1. According to CIE Demand
The SL-1000 can test relative spectral power distribution, chromaticity coordinates, main wavelength, peak wavelength, spectral purity, color temperature, color rendering index, half-width, red ratio, color tolerance, illuminance, infrared irradiance of 300-2500nm and other parameters, fully meeting the requirements of the International Commission on Illumination for light and color measurement.
2. According to Relative Standards
The SL-1000 is designed according to the safety requirements of YY0627-2008 operating and diagnostic lamps, and can be used for the measurement of irradiance, illuminance, spectral power distribution, chromaticity coordinates, color rendering index and other parameters.
3. High Stray Light Control and Wavelength Accuracy

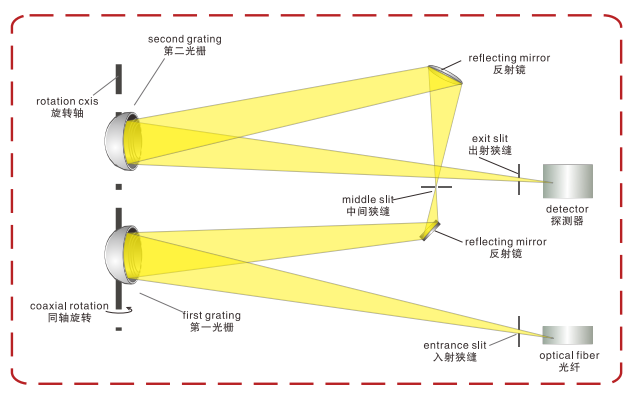

Based on the unique homoaxisymmetric double monochromator technology EVERFINE patented technology), with extremely low stray light levels and extremely high wavelength accuracy.

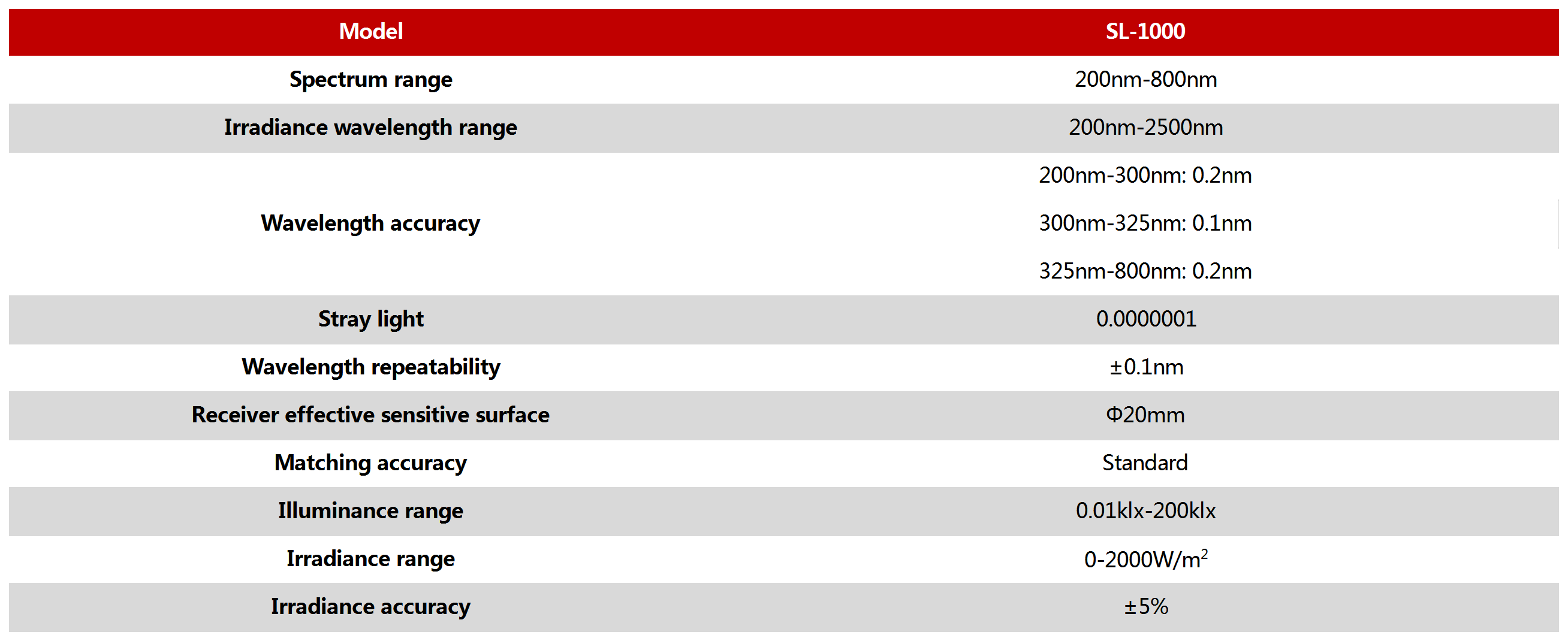

Technical Specifications
