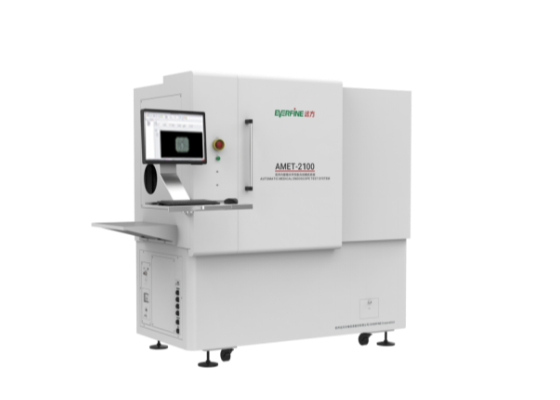

AMET-2100 Automatic Medical Endoscope Test System
Refer to YY0068.1-2008 and other standards, the lighting and imaging quality evaluation of various of optical endoscopes and rigid optical endoscopes are designed and realized.

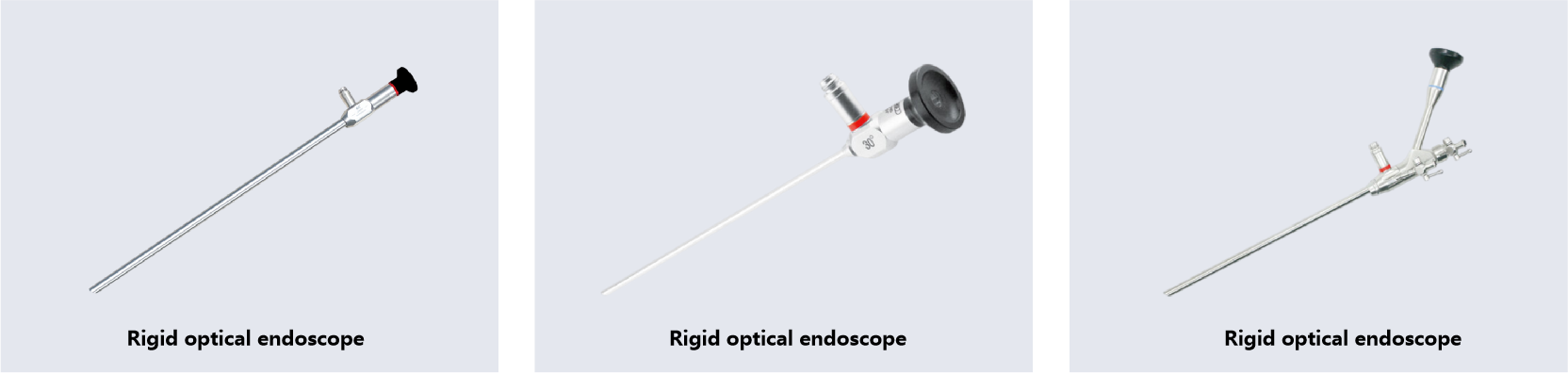

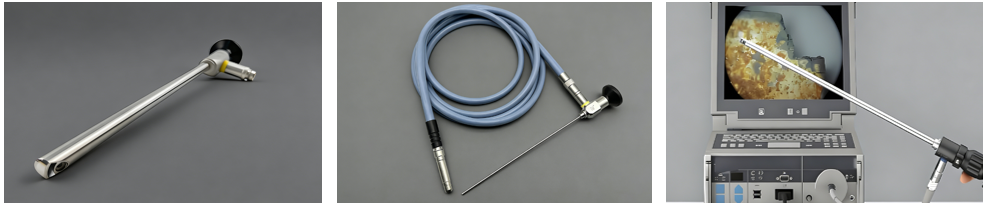

Typical application scenarios
AMET-2100 has the characteristics of high precision, automation and intelligence. The system has high precision, wide range of application, simple operation, rich software analysis functions. Especially suitable for medical endoscope research and development, production, quality inspection and application of performance quality testing.
Main characteristics
1. Based on EVERFINE's 30 years of experience in optoelectrical measurement, AMET-2100 offers high-linearity, high-sensitivity optical measurements.
(1). Using EVERFINE advanced photometric measurement technology to realize high linear,high sensitivity photometry and spectral measurement.
(2). Using excellent artificial intelligence algorithm, accurately identify the target, obtain angular field of view, angular resolution, unit relative distortion, spatial frequency response, static image tolerance and other parameters, to avoid the impression of human subjective factors with high measurement reproducibility, equipped with common video interfaces and supports 4K image capture.
(3). High CRI uniform background light source, stability better than 0.5%, provides more accurate test results;
2. High-accuracy, high-reproducibility, and traceable measurement results
(1). A high-accuracy photometer head and high-precision motorized platform with 0.1mm positioning accuracy ensure accurate full-space illuminance measurements.
(2). Luminance and illuminance measurements are traceable to NIM
(3). The system has the characteristics of high spectral resolution, wide dynamic range, high sensitivity and rapid measurement speed which equipped with high accuracy array spectroradiometer.
3. Highly automatic, highly intelligent, and powerful software
(1). Machine vision-assisted alignment and fine-tuning knob design make it easy to install and align endoscope samples with only a few simple steps.
(2). Automatic measurement: The system integrates an automatic target switching device, automatic precision distance adjustment device, video camera system (supports 4K levels), artificial intelligence algorithm and professional measurement and control software, etc., which can realize automatic switching of measured items, automatic measurement data acquisition and testing, and classifications. (Color reduction and light energy transfer efficiency need to manually replace the eyepiece end tester).
(3). Various clamps are suitable for rigid endoscopes, video endoscopes and camera systems of different sizes, adapts to different field angles. Also supports customized clamps;
(4). With dark room environment: No additional dark room environment is required, and it can realize the no-light environment measurement of each test item.

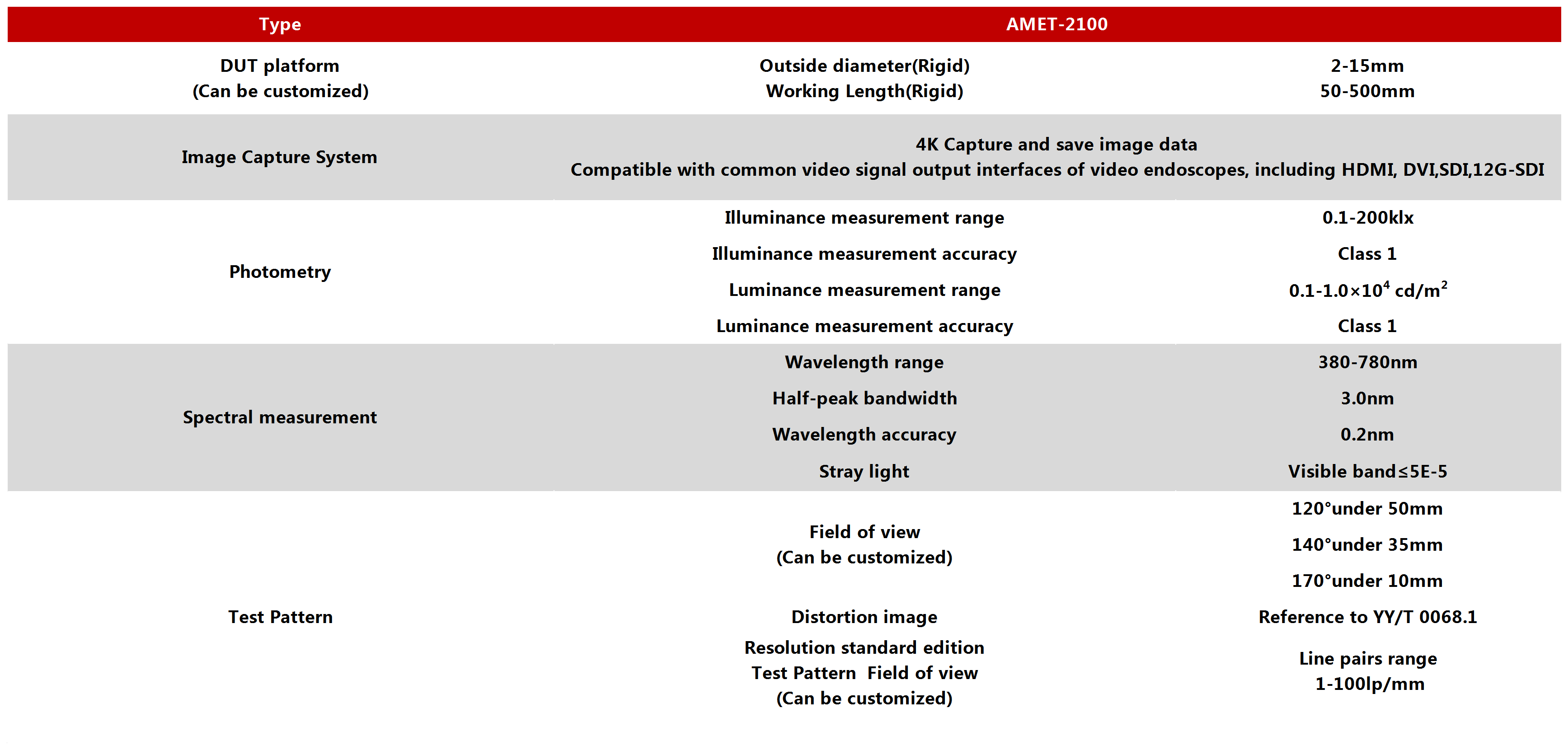

Technical Specifications
