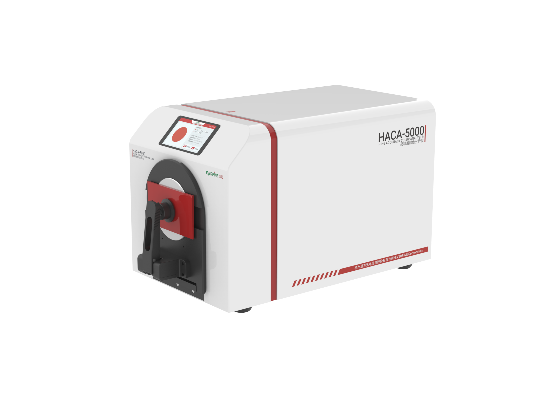

HACA-5000 High Accuracy Color Analyzer
CIE D65 Simulated Light Source Dozens of Patented Technology, High Color Test Accuracy
Typical application scenarios
HACA-5000 High Accuracy Color Analyzer adopts the advanced spectral measurement patent technology, which can realize the spectral reflectance curve, diffuse reflectance curve, spectral transmittance curve, color, color difference and other parameters of the glass cover plate, shell and optical film supporting flat panel TV. To meet the development and quality of material reflectance and color of high precision measurement requirements.
Main characteristics
High Color Measurement Accuracy
Nearly 30 years experienceand dozens of patented technologies make the system have excellent spectral color measurement performance and high color measurement accuracy.
Technical Specifications
| Model | HACA-5000 | |

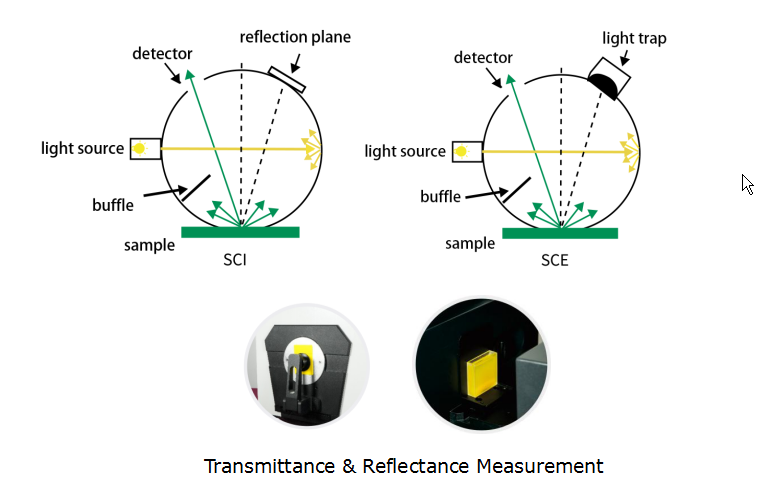

| Measurement Geometry | Reflection: d/8° (Diffuse illumination / 8º reception); Transmission: d/0° (Diffuse illumination / 0º reception) | |
| Illumination Source | LED | |
| Measurement Aperture | Transmission aperture: Φ25 mm; Reflection apertures: LAV: Φ30 mm; MAV: Φ9 mm; SAV: 6.6 mm | |
| Observer Illuminant | A,C,D50,D65,F1,F2,F3,F6,F7,F10,F11,F12,ID50,ID65, etc., with any illuminant selectable | |
| Wavelength Interval | Selectable, up to a maximum of 1 nm | |
| Spectral Bandwidth | Approx.5nm | |

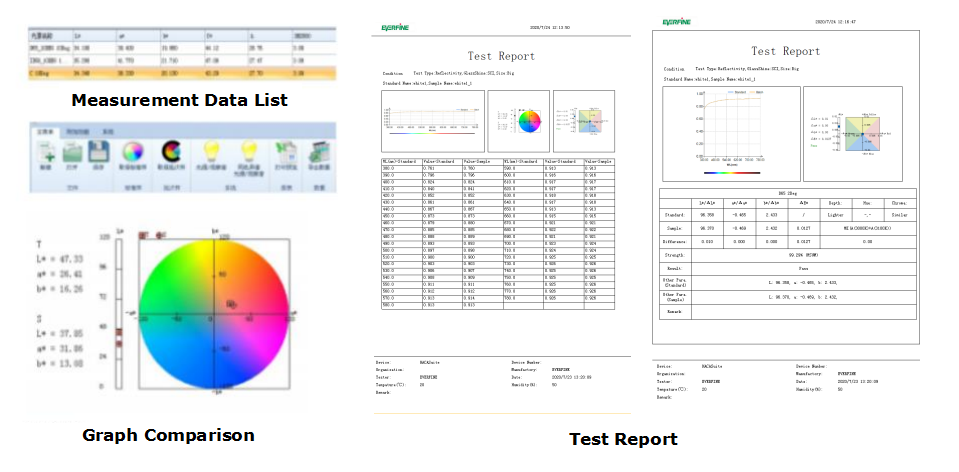

| Measurement Functions | Color, Color Difference, Spectral Reflectance Curve, Spectral Transmittance Curve, Whiteness, Yellowness, Chroma, Color Fastness, Color Density, ISO Brightness, Platinum-Cobalt Index, etc | |
| Color Space | L*a*b、L*C*h、Yxy、Luv、Hunter Lab 、XYZ、RGB等 | |
| Color Difference | ΔE*ab、ΔE*94、ΔE*00、CMC（2：1）、CMC（1：1） | |
| Other Chromaticity Parameters | MI、WI（ASTM313/CIE）、YI（ASTM 313/ASTM D1925）, etc | |
| Wavelength Range | 360-780nm | |
| Reflectance Range | 0-200%，Resolution 0.01% | |
| Repeatability | Standard deviation of spectral reflectance < 0.1%; Standard deviation of chromaticity ΔEab < 0.005 | |
| Operating Temperature/Humidity Range | 10 °C – 35 °C, Relative Humidity ≤ 80%, non-condensing; 0 °C – 40 °C, Relative Humidity ≤ 80%, non-condensing | |
