CXC Series In-line Measurement Systems for NED Devices
Constant-temperature cooling CCD
High stability&repeatability&accuracy
Professional measurement&analysis software for AR
Typical application scenarios
Near-eye display in-line measurement system is a comprehensive measurement system developed by requirements of relevant standards and EVERFINE’s years of experience in the R&D and production of optical devices.
Main characteristics
1.One Sampling Complete the Test
The system adopts a scientific-grade constant temperature cooling array detector, and the spectral response of the detector highly matches the human eye tristimulus value curve, which can quickly and accurately obtain the luminance and chromaticity data of each point in the field of view, and analyze the uniformity.
2.Low Luminance&High Repeatability
High quality constant-temperature cooling detector, with professional low-noise circuit design, even measuring objects with low luminance, CX series still can ensure high repeatability and stability.
3.Wide Linear Dynamic Range &High Accuracy
CX series uses a scientific grade area array detector with good linearity, and also uses high linear dynamic range (HDR) technology, which can achieve less than 1% measurement linearity uncertainty within 7 orders of magnitude range.
4.Advanced AI algorithms
The system is compatible with intelligent image recognition and other algorithms, and can be oriented to a variety of measurement objects (such as shaped screen, curved screen), according to customer needs to develop luminance and chromaticity uniformity analysis function, support the display defect (MURA) evaluation.

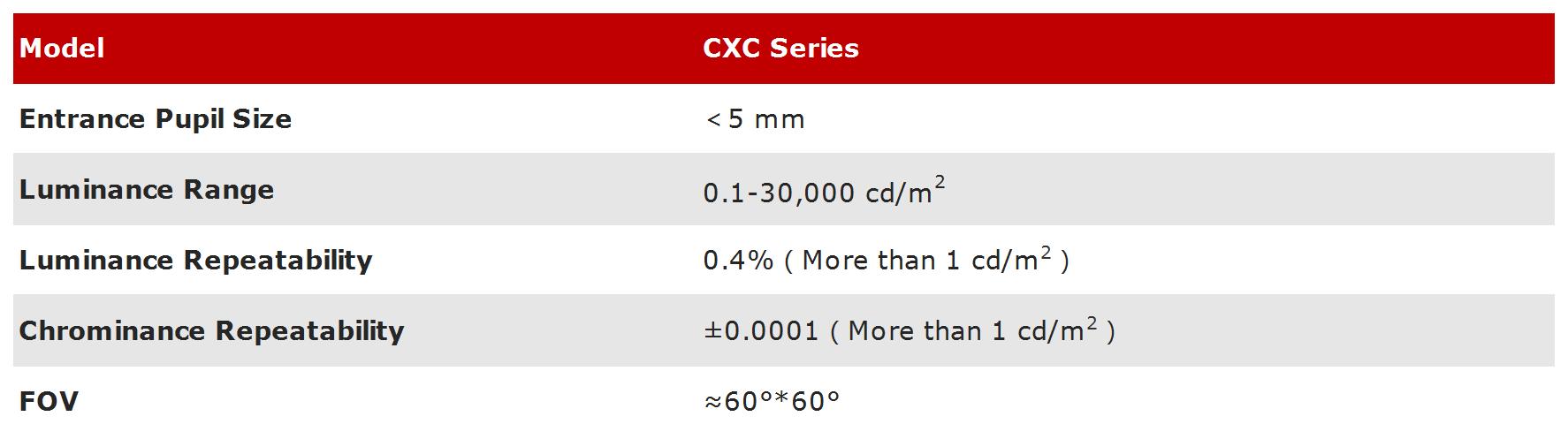

Technical Specifications
