SRC-600 Spectral Radiance Colorimeter
Standard equipment for luminance and chromaticity measurement
Excellent accuracy and speed at low luminance
Typical application scenarios
SRC-600 is a high-precision spectral radiance colorimeter developed by 30 years optical radiation measurement technology reserve of EVERFINE. The insturment combined with precision optical design and high-performance electronic signal processing technology. It integrates spectrum, luminance, and chromaticity measurement functions, and maintains excellent accuracy and measurement speed even at low luminance.
Main characteristics
1.Integrated spectrum, luminance, chromaticity measurement
SRC-600 Spectral Radiance Colorimeter can measure the parameters including luminance, relative spectral power distribution, chrmoaticity coordinate, CCT, color rendering index, etc., covering the photometric and colorimetric parameters of the measured object, truly achieve a multi-purpose machine.
2.Wide measuring range
Without an attenuator, the luminance measurement range is 0.0005cd/m² ~ 600,000cd/m², and an ultra-wide range of 10E8 orders can be achieved without an attenuator to meet the needs of high contrast measurement
3.High measurement Speed&Accuracy&Resolution
SRC-600 uses a constant temperature cooling array detector, there is no V(λ) mismatching error, and the stray light impact is minimal, guarantee the high accuracy measurement, while the pixel cooling detector has a resolution of 0.6nm/pixel, and provides millisecond measurement speed.

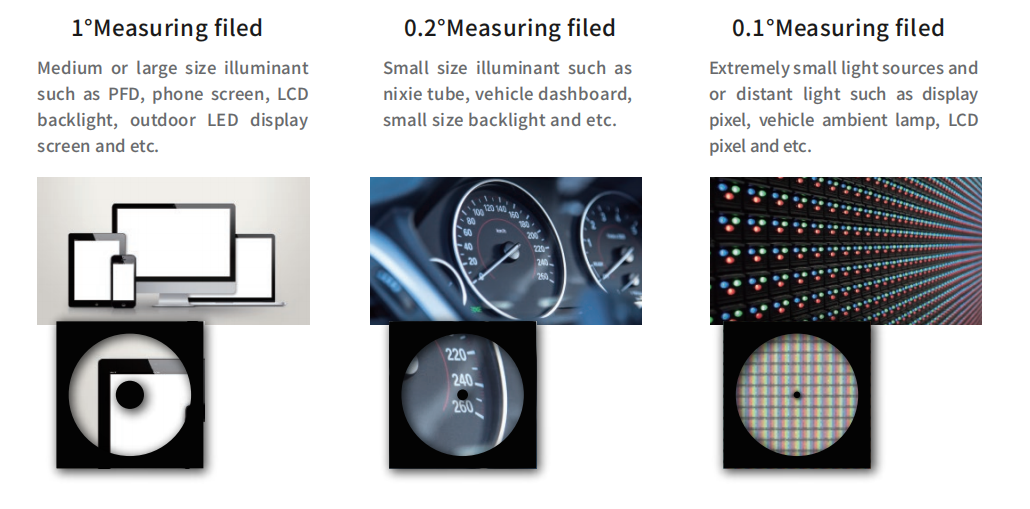

4.Multiple FOV switching
According to different applications, choose different optical measurement angle 1°, 0.2°, 0.1°. Multi-field angle switch. can be applied for small devices such as indicator light, instrument panel measurement, and can also be used for outdoor LED display and other large size luminous body measurement.
5.WIFI remote control function
WIFI remote communication, provides a convenient way for remote measurement and data transmission. User can select remote control function under WIFI communication.

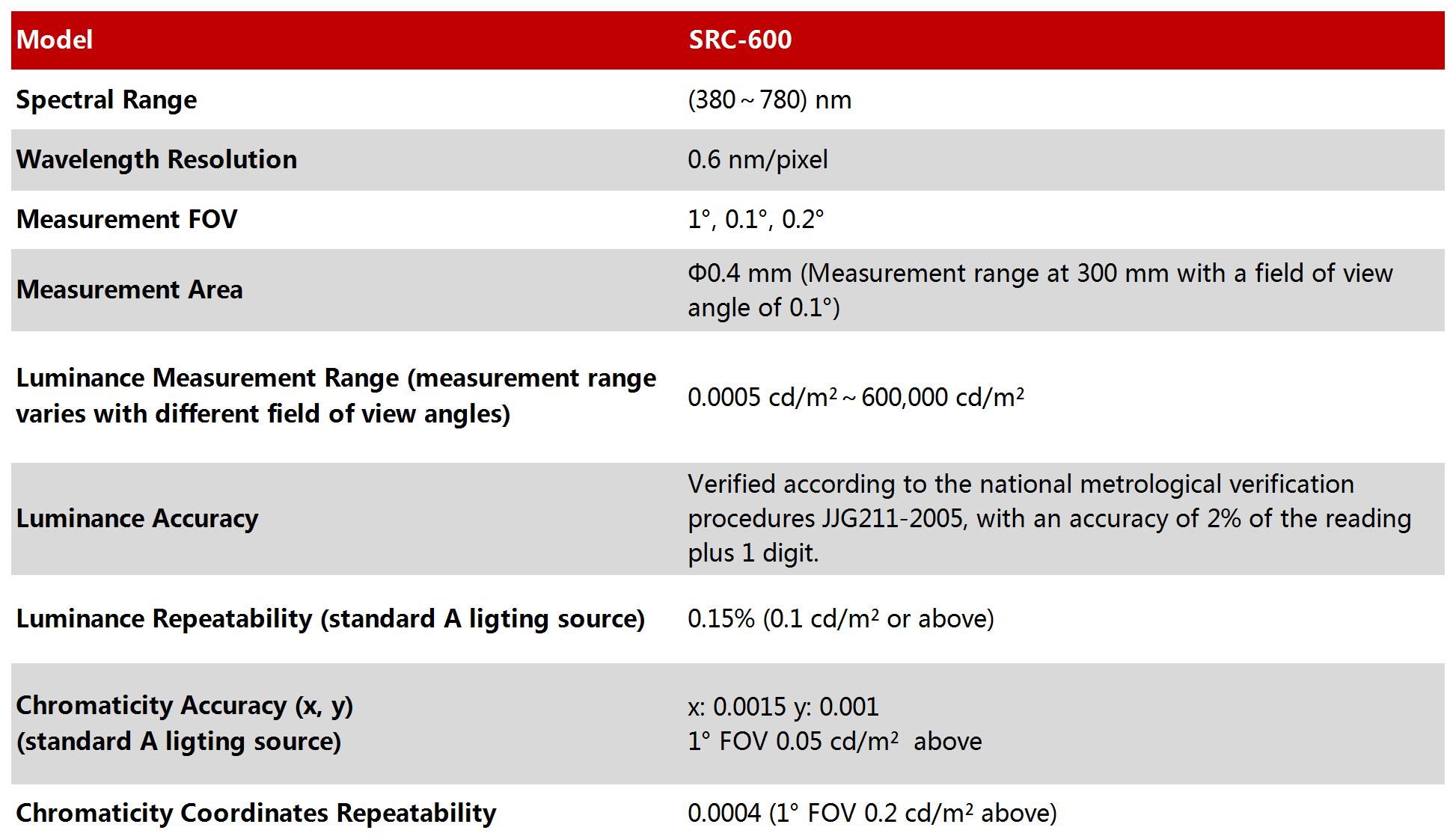

Technical Specifications
| Model | SRC-600 |
| Wavelength range | (380～780) nm |
| Measuring view field | 1°、0.1°、0.2° |
| Measuring area | φ0.4mm（0.1° FOV at 300mm measuring distance） |
| Luminance measurement range (varies depending on the FOV) | 0.0001cd/m²～600,000cd/m² |
| Luminance measurement accuracy | 2% reading +1 digit (according to the requirement of JJG211-2021) |
| Luminance repeatability(Standard A light source) | 0.15%(＞0.1cd/m²) |
| Chromaticity Accuracy (Standard A light source) | x: 0.0015 y:0.001 1°FOV＞ 0.05cd/m² |
| Chromaticity repeatability | 0.0004(1°FOV ＞0.2cd/m²) |
