OLED-100 OLED Optical Performance Analysis System
Integrated dark box design Integrated measurement of IVL curve and EQE
Typical application scenarios

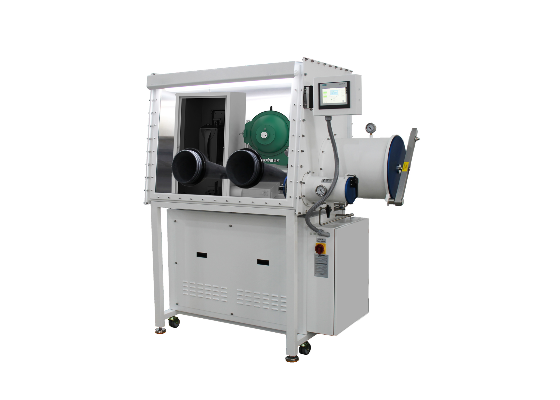

Integrated OLED-100 high-accuracy spectral luminance meter, dark box, positioning stage, power supply, and professional software in a compact design, enabling the entire test system to be placed inside a glove box for evaluation of TEG devices, including luminance, chromaticity, I‑V‑L characteristic curves, and viewing‑angle performance.
Main characteristics
1.Integrated spectrum, luminance, chromaticity measurement
The parameters that can be measured include luminance, relative spectral power distribution, chromaticity coordinates, correlation color temperature, color rendering index, color gamut coverage, etc., covering the luminance,spectrum and chromaticity parameters of the measured object.
2.High accuracy

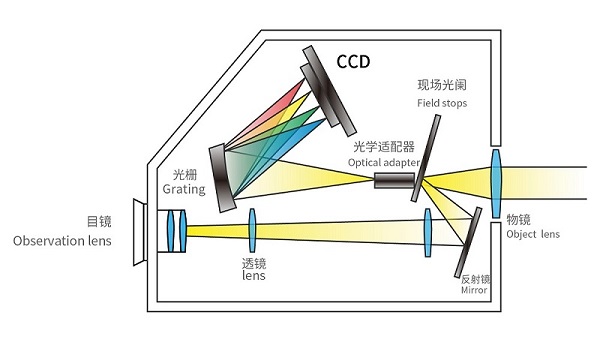

The system uses spectral method (spectrophotometry) to measure luminance and color parameters, it has no V（λ) and tristimulus mismatching error compared with tristimulus-filter detector.
Technical Specifications
| Model | OLED-100 |
| L-axis Travel and Accuracy | Max. Test Distance: 150 mm |
| Viewing Angle Range | -90°~90° |

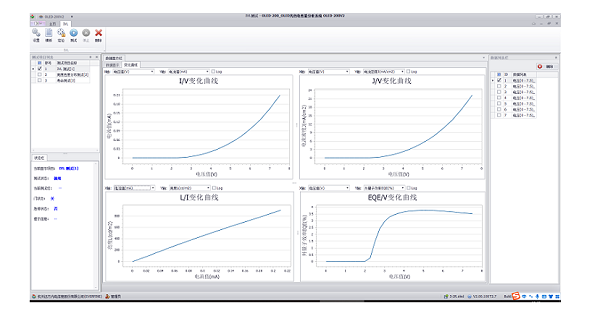

| Software Features | Provides stable current and voltage output, accurately measures the luminance and chromaticity parameters of the device, and records output and test data in real time. Supports IVL, Luminance vs. Current (L-I) curves, Luminance vs. Voltage (L-V) curves, Current vs. Voltage (I-V) curves, Current Density (cd/A), and External Quantum Efficiency (EQE) |
