VLAS-2000 Vehicle Lighting Optical Performance Analysis and Measurement System
Products
Vehicle Lighting Test
VLAS-2000 Vehicle Lighting Optical Performance Analysis and Measurement System
VLAS-2000 Vehicle Lighting Optical Performance Analysis and Measurement System
recise Positioning & Advanced AI‑Integrated Algorithms

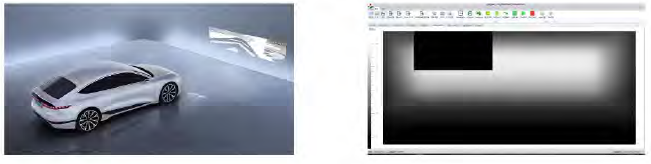

Typical application scenarios
VLAS‑2000 is a fast road‑illuminance measurement system for full‑vehicle headlamp performance evaluation, integrating C‑NCAP rules, headlamp standards, positioning platform, precision optics, AI, and scoring modules, with easy operation, fast accuracy, and stable performance.
Main characteristics
1.Adopting a high‑resolution, high‑precision imaging‑type direct‑reading optical measurement system with wide linear dynamic range and excellent V(λ) matching, enabling accurate measurement of both bright and dark areas simultaneously.
2.Paired with a precision rotating stage to achieve wider‑angle measurements within limited darkroom space.
3.A proprietary alignment screen with near‑Lambertian diffuse reflection characteristics ensures long‑term stability and uniformity.

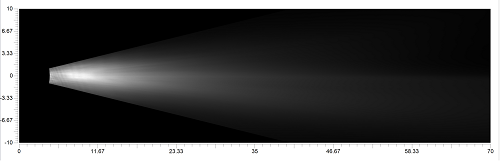

4.The software integrates AI algorithms to convert the acquired intensity distribution data of left and right low/high beams at an equivalent 25‑meter distance, based on vehicle headlamp mounting parameters, into road illuminance distribution after synthesis.
5.C‑NCAP vehicle lighting performance scoring module – calculates relevant C‑NCAP indicator scores from the synthesized illuminance data in accordance with the C‑NCAP management rules.
6.Supports photometric imaging measurement of high‑resolution pixel lights and projection lights for full‑vehicle information display, fully restoring and accurately evaluating the intelligent headlamp information display performance.
