LT-500A Aging-Life Test system for LED Luminaires
Meets the measurement requirements of accelerated aging-life related to IES LM82 and IES LM84
Typical application scenarios
LT-500A system is widely used for normal /accelerated aging, lumen maintenance measuring, chromaticity shift measuring, lifetime evaluation and temperature characteristic testing for LED luminaires, arrays, and modules. The extrapolation of lifetime by programmable models is also available to estimate the lifetime of LED luminaires.
Main characteristics
1. Online Automatic Test
Programmable precision power supply by multi-channels independent & intelligent design, complete real-time online automatic photoelectric parameter testing, making the long and complicated LED product aging, life test and temperature test become very simple and easy.
2. Adjustable Burning Position
The flexible design achieves base down/base up position freely.
3. Accurate and Reliable Long-term Data
The system with self-correction function, without frequent manual correction, greatly improve the efficiency of staff, while long-term data is more accurate and reliable.
4. Excellent System Integrity
The system contains a number of EVERFINE patented technology so as to lead the level in the world, the whole system design is good, beautiful and generous.
5. Core Autonomy
This system design refers to the advanced standards and literature such as the American LM-82 standard, and is the crystallization of long-term scientific research of EVERFINE (including the research results of the national 863 program and the doctoral thesis of Zhejiang University under the guidance of Professor Pan, technical director of EVERFINE).
6. Stable and Reliable Performance
This system has a complete independent intellectual property rights, different from other patchwork devices. It is not only stable and reliable performance on quality, but also guaranteed after-sales service.

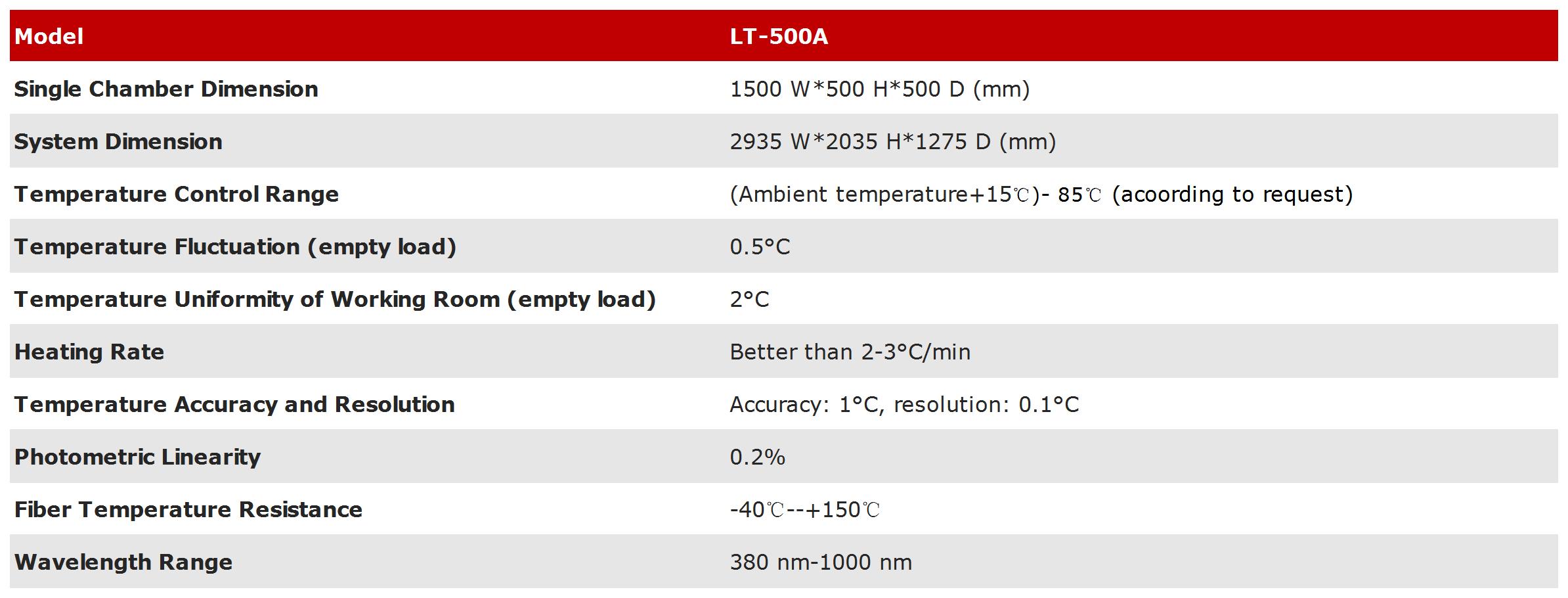

Technical Specifications
| Model | LT-500A |
| Six-Zone Temperature-Controlled Test Chamber Individual Workspace Dimensions | 1500 W × 500 H × 500 D (mm) (customizable) |
| Overall System Dimensions | 2935W*2035H*1275D(mm) |
| Temperature Control Range | (ambient + 15 °C)–85 °C |
| Temperature Fluctuation (No Load) | 0.5℃ |
| Chamber Temperature Uniformity (No Load) | 2℃ |
| Heating Rate | Better than 2–3 °C/min |
| Temperature Measurement Accuracy and Resolution | Multi-channel temperature acquisition system for simultaneous monitoring of the LED housing and driver temperature at each position. Equipped with high-accuracy, high-temperature-resistant sensors; accuracy: 1 °C; resolution: 0.1 °C |
| Standard Test-Position Configuration | 60-position lamp-operating fixture, standard configuration with 60 E27 lampholders (custom configurations available) |
| High-Temperature Chamber Control Range | (ambient + 15 °C)–85 °C (or as specified by the user) |
| Test Positions | 60-position lamp-operating fixture, standard configuration with 60 E27 lampholders (custom configurations available) |
| Optical Fiber Operating Temperature Range | -40℃~+150℃ |
| Spectral Analysis Wavelength Range | 380nm~1000nm |
