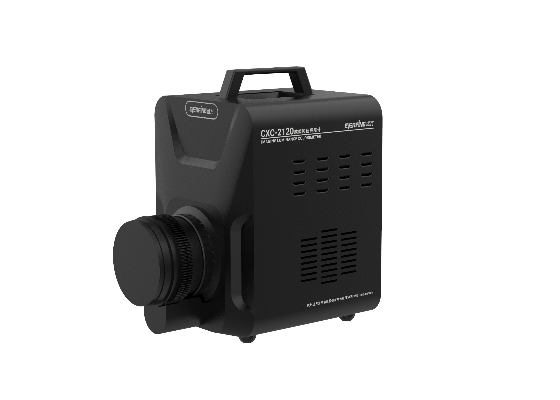

CXC-2120 Imaging Luminance Colorimeter
2D luminance and colorimetry measurement of medical displays, viewboxes, and imaging devices
Typical application scenarios
Main characteristics
1. One-shot acquisition for full spatial uniformity information
Equipped with a scientific-grade, thermoelectrically cooled area‑array detector whose spectral response closely matches the human eye tristimulus curves, a single measurement is equivalent to thousands of spot luminance meters operating simultaneously. This enables fast and accurate acquisition of luminance and chromaticity data across the entire field of view, along with uniformity analysis.
2.Low‑luminance, high‑repeatability measurement
The high‑quality cooled detector, combined with low‑noise circuit design, ensures excellent repeatability and stability even under very low luminance levels.

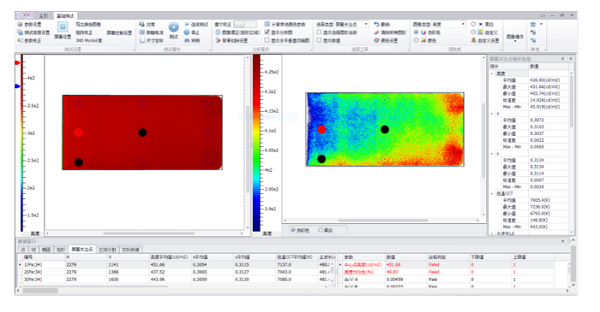

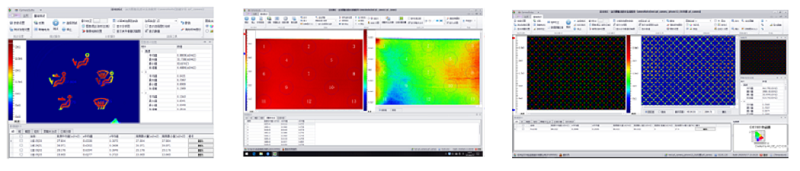

3.Advanced AI algorithms for versatile measurement and analysis
Compatible with intelligent image recognition and other algorithms, the system can be tailored to various measurement targets (e.g., viewing lamps, medical imaging displays, medical screens) with custom luminance and chromaticity uniformity analysis functions. It also supports Mura defect evaluation for displays.
4.Wide linear dynamic range and high measurement accuracy
In addition to the scientific‑grade area‑array detector with excellent linearity, the system employs high dynamic range (HDR) technology, achieving measurement linearity better than 1% over 7 orders of magnitude.
