Intelligent Cabin Photometric&Colorimetric Test Solutions

系统简介

EVERFINE provides a complete solution for automotive cabin testing with an imaging luminance colorimeter as its core. The measurement solution is mainly used to test the luminance, color, and uniformity of the automotive displays, ambient lighting, backlit characters, instrument components, controllers, signaling devices, etc, which includes CXC Series Imaging Luminance Colorimeter, SRC Series Spectral Radiance Colorimeter, MAT Series LED Module Automatic Test System, HUD Series Optical Property Test System For Head-up-display, etc.

Automotive Instrument Character Testing

EVERFINE CXC Series Imaging Luminance Colorimeter with the advantages of good imaging quality, high precision, fast measurement speed, and easy operation can achieve two-dimensional measurement, which is mainly used for the measurement of the image luminance, chromaticity, luminance uniformity, chromaticity uniformity, etc. When equipped with corresponding specialized analysis software, it can be used for measuring the luminance and color uniformity of ambient lighting, small emitting characters in cars, backlit instrument panels, OLED taillights, and more, as well as the light intensity distribution of headlight.

推荐产品

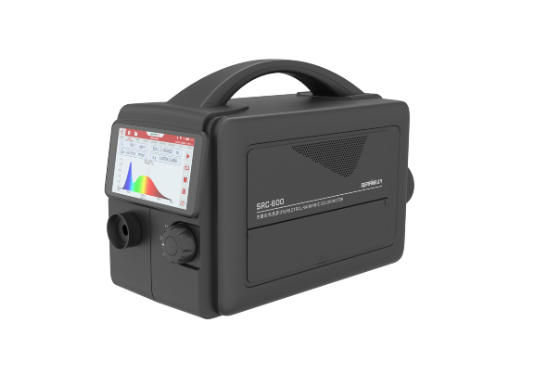

SRC-600 Spectral Radiance Colorimeter

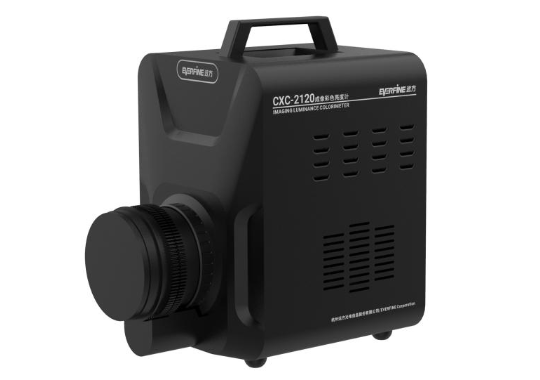

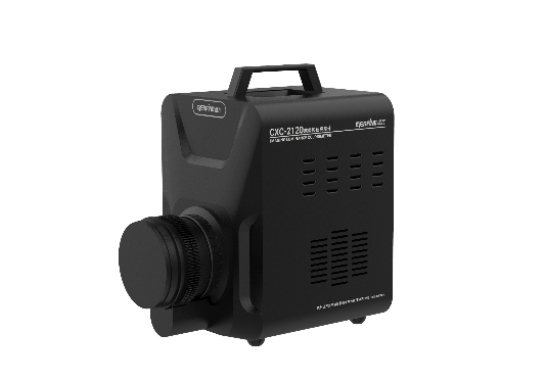

CXC-2120 Imaging Luminance Colorimeter

LPTS-200 Automotive Projection Optical Characteristics Test System

LPTS-200 Automotive Projection Optical Characteristics Test System mainly consists of the high accuracy imaging luminance colorimeter, the standard diffusing alignment screen, and specialized measurement and analysis software, which is used for the analysis of the photometric and chromatic characteristics, image distortion, etc. of automotive projection lamps, welcome lights, and more.The system is suitable for the test both in the laboratory and production.

CLA-200 On-Line Carpet Lamp Optical Analyzer

EVERFINE CLA-200 On-Line Carpet Lamp Optical Analyzer is a specialized online optical performance measurement and analysis system designed for quality control in the production process of automotive carpet lamps, which integrates the precision optical measurement unit, power supply unit, and dedicated optical measurement and control software based on artificial intelligence algorithms. It can quickly and accurately measure and analyze the optical performance parameters including illuminance distribution, luminance distribution, graphic dimensions, edge gradients, blackness, and other optical performance parameters. of automotive carpet lamps. The system has a compact structure, convenient operation and stable performance with accurate, fast, and effective quality assurance for products.

MAT-200B LED Module Automatic Test System

MAT-200B LED Module Automatic Test System is widely used in the testing of LED linear guide strips for automobiles. The system integrates high precision imaging luminance testing and color testing, which can achieve 100% detection of parameters such as luminance, luminance uniformity, and color of automotive decorative strips.

MAT-200D LED Module Automatic Test System

MAT-200D adopts high accuracy spectroradiometer to measure the luminous flux, colorimetric, and electrical parameters of each LED lamp on the automotive light source board, and cooperates with professional software to achieve color consistency calibration. By setting the threshold of relative luminosity and color gamut partition, the system automatically determines whether the product is qualified, which is suitable for online 100% testing.

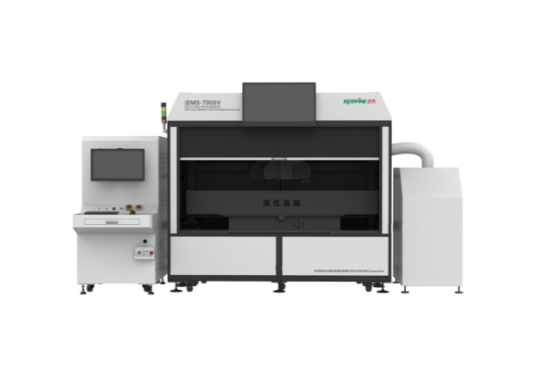

DMS Series Optical Property Test System for Display

EVERFINE DMS Series Optical Property Test System for Display is equipped with a precision automatic turntable and alignment system, which is mainly used for measuring the luminance uniformity, chromaticity uniformity, chromaticity coordinates, correlated color temperature, color gamut area and coverage, white balance, contrast, firefly, crosstalk, viewing angles (including horizontal and vertical viewing angles), color deviation, black and white response time (rise time, fall time), gray level response time, flicker characteristics (JEITA method), and GAMMA of the central control navigation screen. The software controls the six-axis automatic rotation and comes with a black metal dark box.

推荐产品

DMS-1500H Optical Property Test System

HUD Series Optical Property Test System For Head-up-display

HUD-3000 is an integrated Head-Up Display (HUD) comprehensive optical characteristic measurement and analysis system, which is equipped with a multidimensional automatic turntable and high-precision luminance measurement equipment that simulates human eye imaging. With professional measurement and control analysis software, it can quickly and accurately measure the optical characteristics of HUD, such as virtual image distance, eye box size, luminance and chromaticity uniformity, imaging distortion, etc. For the measurement of HUD products on the production line or on-site, EVERFINE has also launched a HUD optical measurement module with professional analysis software. This solution facilitates customers to integrate the HUD optical measurement module for rapid testing of HUD products on the production line, as well as inspection of HUD optical characteristics on-site or in the cockpit.

CMS Automotive Electronic Rearview Mirror Testing System

EVERFINE VCMS-2000 is an integrated solution for testing electronic rearview mirrors in vehicles. Designed in accordance with standards such as QC1128-2019, GB/T38892-2020, ISO 16505-2019, and GB 15084, with the advantages of  comprehensive functionality and easy to operate, the system consists of a camera testing system and a display testing system, and integrates EVERFINE spectral radiance colorimeter, imaging luminance colorimeter, display response time tester, and various environmental light sources, which the measurement automation level is high and the stability is good.
