PF6000 High Accuracy Electrical Power Analyzer
Higher industrial level power analyzer, 0.03% measurement accuracy
Typical application scenarios
PF6000 Electrical Power Analyzer is a kind of power analyzer which with high-performance appropriate for production,measurement accuracy reached 0.03%, measurement, evaluation and scientific research, and also can offer assistance during the research and testing of electric vehicle, high speed railway, photovoltaic, wind electricity, electrical machine, transformer, fuel cell, lighting circuit, switching power supply and etc. to improve the efficiency of product research and production test.
Main characteristics
1. Humanization Design, 10.1-inch
10.1 inch color LCD full touch interface, high pixel of 1280*800, it can easy operation platform with high-quality.
2. Multiple Data Display Modes
Multiple data display modes include numeric value, waveform and bar graph, and combination display.
Provide active power waveform display and efficiency waveform display of continuous sampling and updating in specified time.
3. Wide Bandwidth and High Stability
With 5MHz power bandwidth,it can satisfy the measurement of high speed switching signal. The high-speed measurement module uses sensors with high frequency and high stability to ensure the high frequency performance of current.It also has the automatic frequency response compensation technology.
4. FPGA Processor
Measurement units of power and motor equipped with FPGA and multi-channels synchronous clock control, improve signal sampling and data processing, ensure that all sampled data have no omission of real-time operation, and restore the authenticity of the signal.
5. Intelligent switching of sampling frequency
Intelligent switch the appropriate sampling frequency for signal sampling, by real-time monitoring and analyzing the measured signal.
6. Cursor Measurement
Support to move the cursor to measure the value of the cursor point on the waveform.
7. Save/Call/Playback Modes
Save or call measurement data and setting parameters by PC testing software.Supports playback of historical data and waveform on local or PC software,and playback speed is adjustable.
8. Communication Interface and PC Software
Provide communication interface includes USB, LAN, RS-232 and GP-IB
Provide special software which can fast test parameters configuration and datum&waveform acquisition, etc.

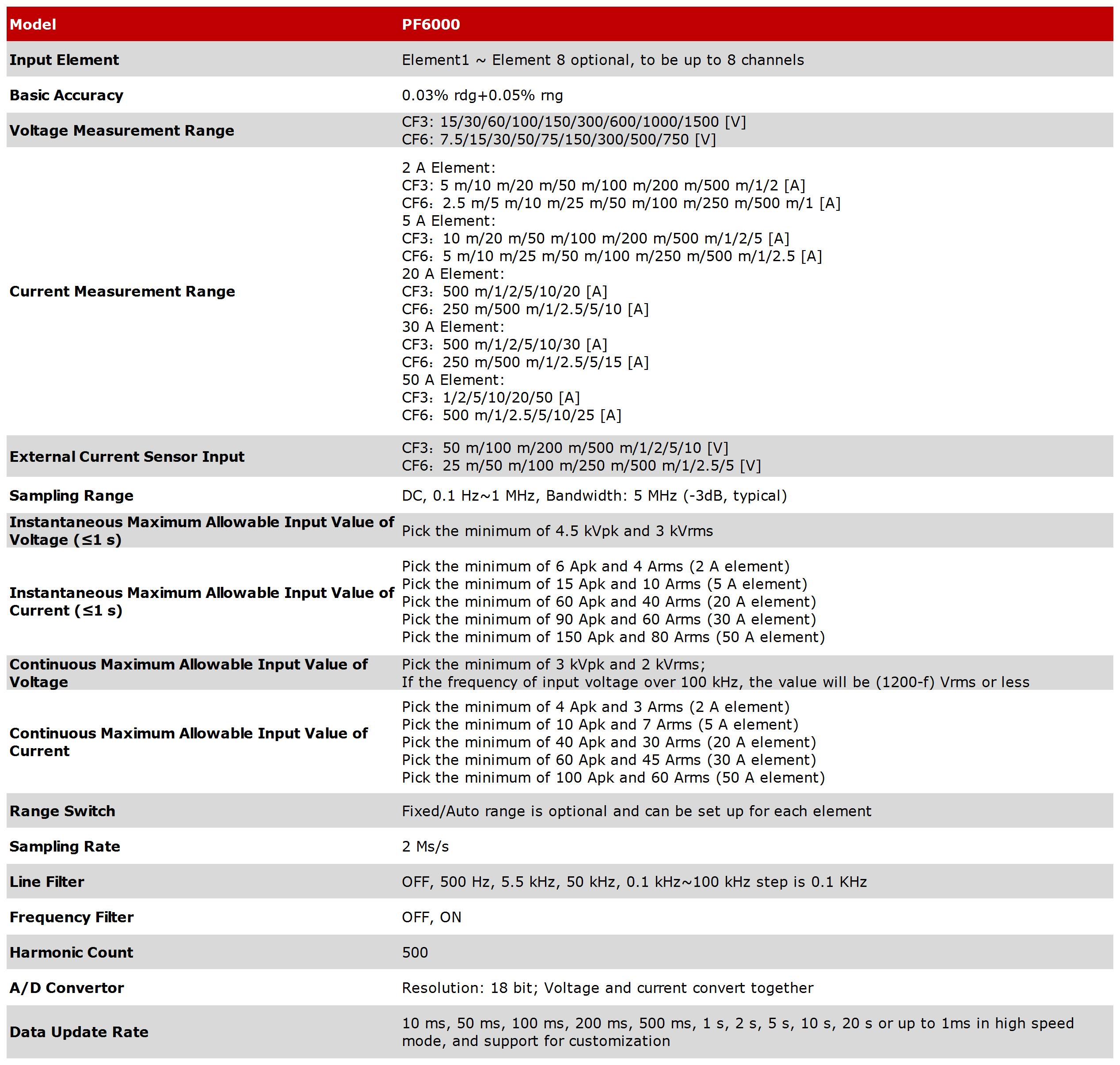

Technical Specifications
| Model | PF6000 |
| Input Units | Element1~Element8, capable of installing power measurement units, current sensor units, and motor measurement units |
| Basic Accuracy | 0.03%rdg+0.05%rng |
| Voltage Measurement Range | CF=3:1.5/3/6/10/15/30/60/100/150/300/600/1000/1500[V] |
| Current Input Units | 5A/50A/sensor input units optional |
| Current Measurement Range | For 5A input unit: 10m/20m/50m/100m/200m/500m/1/2/5 [A] |
| External Current Sensor Input | 50m/100m/200m/500m/1/2/5/10[V] |
| Frequency Test Range | DC, 0.1HZ~1MHz, Bandwidth: 5MHz (-3 dB, typical) |
| Maximum Instantaneous Voltage Input (≤1s) | Minimum of 4.5kVpk and 3kVrms |
| Maximum Continuous Voltage Input | For 5A input unit: Minimum of 15Apk and 10Arms |
| Maximum Continuous Voltage Input | Minimum of 3kVpk and 2kVrms |
| Range Switching | For 5A input unit: Minimum of 10Apk and 7Arms |
| Range Switching | Fixed/automatic range selectable; each input unit can be set independently |
| Sampling Rate | 2Ms/s |
| Line Filter | OFF，500Hz、5.5kHz、50kHz、0.1kHz~100kHz in 0.1kHz steps |
| Frequency Filter | OFF, ON |
| Harmonic Order | 500 |
| A/D Converter | Resolution: 18bit;simultaneous conversion for voltage and current inputs |
| Data Update Rate | 10ms~20s selectable, or up to 1 ms in high-speed mode with custom support |
