Vehicle/Airborne Display Measurement Solutions

系统简介

EVERFINE’s vehicle/airborne display measurment solution mainly includes the measurement of luminance, chromaticity, uniformity, viewing angle characteristics and other optical properties(ambient light contrast test)&thermal properties(extreme test).
Solutions include imaging luminance colorimeter, spectral radiance colorimeter, EMC test equipment, etc., meet the requirements of various international and national relevant standards for vehicle/airborne display.

Optical Characteristic Measurement System for Vehicle/Airborne Display

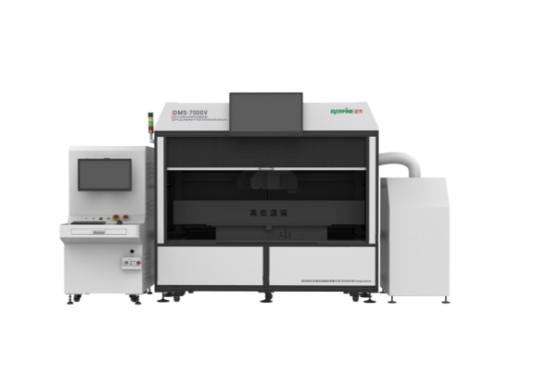

DMS-7000V optical characteristic measurement system is mainly used for car navigation screens, backlight modules, finished displays, etc., to measure luminance, chromaticity, uniformity, color gamut, viewing angle and other conventional photometric& colorimetric&electrical characteristics measurements. DMS-7000V also design with reference to the test requirements of many international&national standards such as IDMS, SAE, IEC, etc.

推荐产品

DMS-8500 Optical Property Test System

Measurement of Vehicle/Airborne Display Uniformity

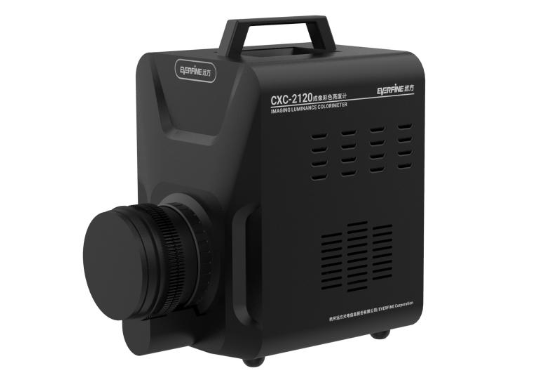

CXC series Imaging Luminance Colorimeter accurately matches the color matching function of CIE1931, through one sampling measurement can obtain the luminance, chromaticity and uniformity information of each point in the field of view. Instruments can be used for measuring luminance, luminance uniformity, chromaticity coordinates, CCT, chromaticity uniformity, black Mura etc. CXC series not only suitable for laboratory measurement, but also can be applied to optical quality control in the production line.

Spectral Luminance Measurement of Vehicle/Airborne Display

SRC series is a high-precision spectral radiance colorimeter developed by EVERFINE’s 30 years technology reserve of optical radiation measurement. The insturment combined with precision optical design and high-performance electronic signal processing technology. It integrates spectrum, luminance, and chromaticity measurement functions, and maintains excellent accuracy and fast measurement speed even at low luminance
SRC series can measure and evaluate the luminance, luminance uniformity, chromaticity coordinates, spectral power distribution, chromaticity uniformity, white balance, color gamut area, color gamut coverage and other optical characteristics of vehicle/airborne displays, and meet the measurement requirements of various development processes such as QA, R&D, and on-field measurement.

推荐产品

SRC-600 Spectral Radiance Colorimeter

SRC-200 Spectral Radiance Colorimeter

Response Time and Flicker Test for Vehicle/Airborne Display

DRT series mainly used for the measurement of luminance, chromaticity coordinates, tristimulus value, CCT, flicker, and response time of vehicle/airborne displays. It is not only suitable for fast on-filed measurement, but also meets the needs of production line measurement with its excellent repeatability and stability.

GAMMA Calibration and Testing for Vehicle/Airborne Displays

DCA series display color analyzer is based on EVERFINE’s decades technology reserve of photometric and colorimetric measurement. Instruments provide. XYZ three channel detector, their spectral sensitivity curve are strictly match CIE 1931 three tristimulus curve and reached spectral level measurement.  DCA series mainly used for luminance, chromaticity, GAMMA and flicker measurements of vehicle/airborne displays. It is not only suitable for field measurement, but also meets the production line measurement requirements with its excellent repeatability and stability.

推荐产品

DCA-310 Display Color Analyzer

DCA-510 Display Color Analyzer

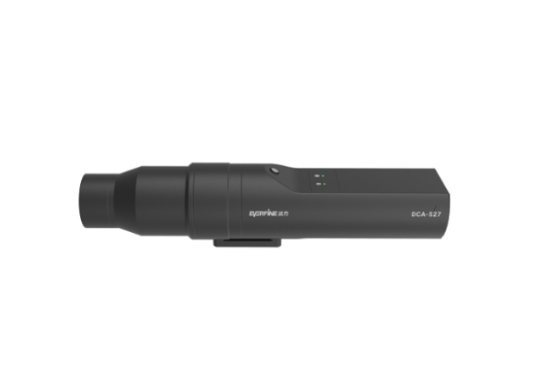

DCA-527 Display Color Analyzer

Blue Light Hazard Test for Vehicle/Airborne Display

Blue light hazard test system are mainly used to evaluate the photobiological hazard and blue light hazards of vehicle/airborne displays, measurable items including: retinal blue light hazard weighted radiance luminance, blue light hazard factor, retinal thermal hazard weighted radiance luminance, near UV hazard for eyes, testable blue light radiation luminance, blue light weighted radiation luminance and blue light weighted radiance luminance ratio.

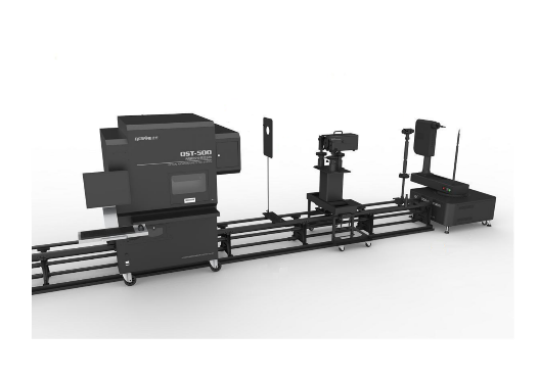

OST-500 Optical Radiation Test System

Ambient Light Comparison Test for Vehicle/Airborne Display

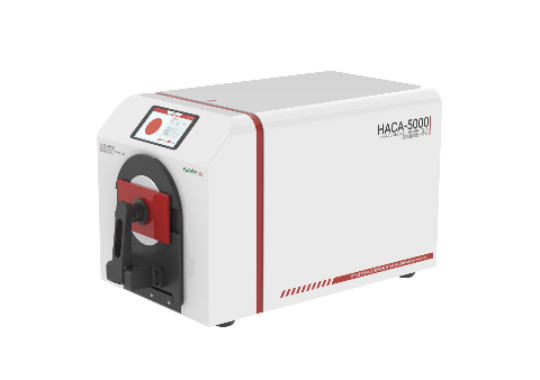

HACA series high accuracy color analyzer adopts advanced spectral measurement patent technology, which can realize the spectral reflectance curve, diffuse reflectance, spectral transmittance curve, color, color difference and other parameters of glass covers, shells, optical films and other materials supporting vehicle/airborne displays, and meet the high-precision measurement requirements of R&D and quality on material transmittance and color.

推荐产品

HACA-3800 High Accuracy Color Analyzer

Haze and Transmittance and Reflectance Test of Vehicle/Airborne Display

HAM series High Accuracy Spectral Haze Meter is mainly used for the spectral transmittance, haze and optical color performance of materials under different wavelengths of vehicle/airborne display glass covers, optical films and other materials, referring to the requirements of ASTM D1003, GB/T 2410, ISO14782 and other standards. The spectral band range covers 380-1000nm, suitable for the testing needs of large and small samples.

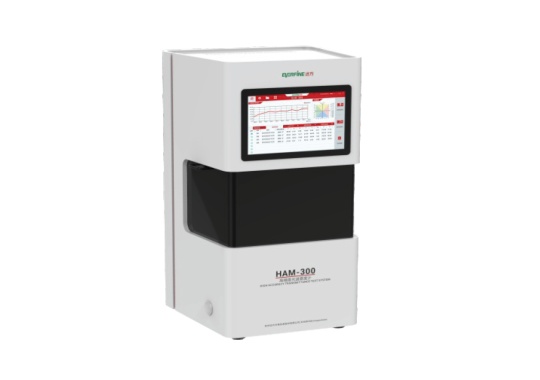

HAM-300 High Accuracy Spectral Haze Meter

EMC Testing for Vehicle/Airborne Displays

According to the requirements of the relevant standards of the display, vehicle / airborne displays  need to undertake the EMC test. The test items include EMI CE (Conducted Emission) test, ESD(Electrostatic Discharge) immunity test, EFT(Electrical Fast Transient) immunity test, surge immunity test, voltage dip immunity test and other EMI&EMS test.

推荐产品

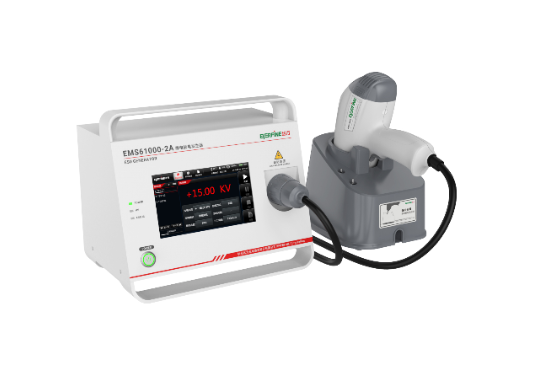

EMS61000-2A ESD Generator

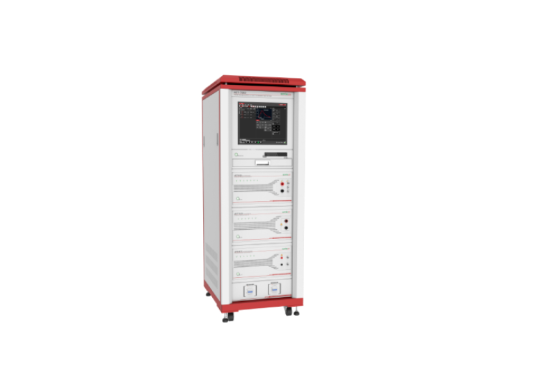

AET7000 Automotive Immunity Test system
