EMS61000-2A ESD Generator
Leading 50kv Output Capacity, Unique Effective Discharge Counting Function
Typical application scenarios
EMS61000-2A is the high reliability ESD generator is specially designed according to the characteristics and requirements of electrostatic discharge immunity test. By replacing the discharge module, it can conveniently carry out the test of IEC mode, HBM mode and MM mode and is suitable for the ESD test of all kinds of lighting appliances, electronic circuits and equipment.
Main characteristics
1. Built in Li-battery power supply and with portable design, it’s easy to use and can also be used through the mains power supply.
2. Electronic high-voltage power supply, voltage stability, high accuracy, test voltage up to 20.0kV.
3. It can intelligently identify a variety of external discharge modules for ESD testing.
4. With discharge detection function, discharge detection sensitivity is adjustable.
5. 7 inch LCD touch screen display, friendly human-computer interaction.
6. With RJ45 communication function, it can realize computer remote control, and the USB connection port can recognize U disk.
7. The built-in file system can easily export and save test reports.
8. With self-inspection function, including high-voltage power output accuracy inspection and discharge relay consumption inspection.
9. Environmental monitoring function, which can detect the current ambient temperature, humidity and air pressure.

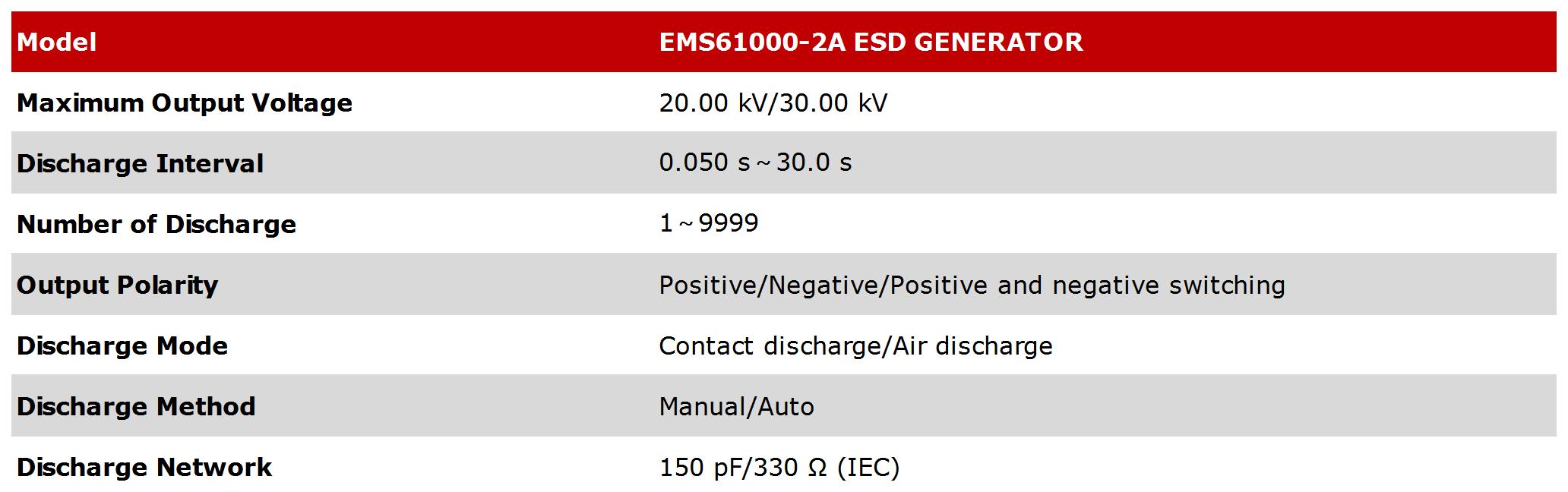

Technical Specifications
