JZT-998FGB Single finger capture module
JZT-998FGB Single finger capture module is a semiconductor capacitive fingerprint module launched by Wellcom Technology after decades of accumulation in the fingerprint industry.This series of products have high anti-counterfeiting performance, the application of living fingerprint detection technology effectively eliminates the misidentification of fake fingerprint,fingerprinting and other false fingerprints,and solve the technical problem of living fingerprint identification in the biometric industry.

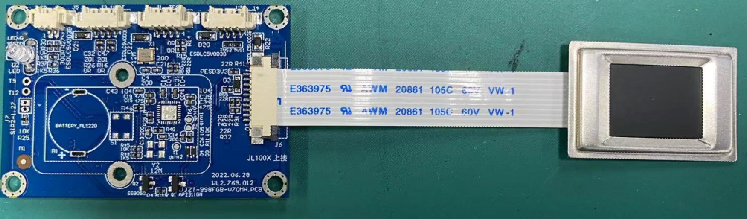

The product is composed of capacitive fingerprint sensor and main board, which has stable performance, with the upper computer software has fingerprint acquisition, fingerprint registration, fingerprint comparison , fingerprint search functions and so on.The fingerprint products based on JZT-998 series modules have been widely used in finance, transportation and other fields. The fingerprint modules put through the wringer in high temperature, high humidity, cold, dry, static electricity, fog and many other extreme climate environments.
Typical application scenarios
Main characteristics
Function
Independently complete the fingerprint collection.
Good anti-counterfeiting
Reflective induction detection technology, live fingerprint detection function, with the ability to identify the finger mode and false fingerprint .
Small size
The sensor is small and can be flexibly embedded into a variety of volume-limited products.
Strong antistatic ability
It meets the requirements stipulated in GB/T 17626.2-2006 in the severe grade 4, and is particularly adaptable to areas where the environment is dry and prone to static electricity.

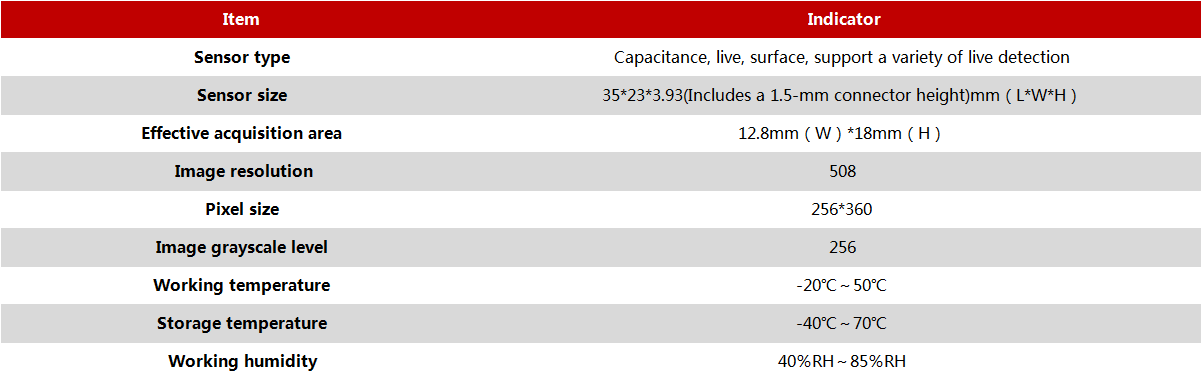

Technical Specifications
