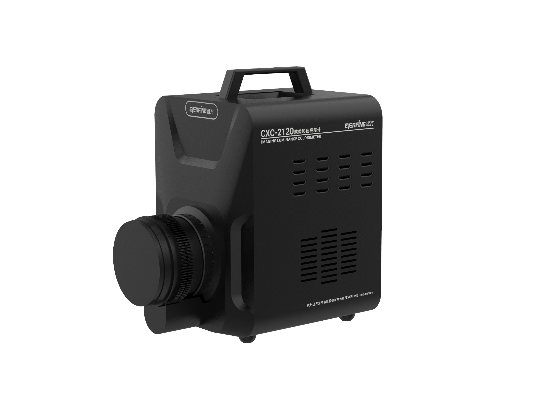

CXC-2120 Imaging Luminance Colorimeter
CXC-2120 is an imaging colorimeter that enables fast analysis of luminance and chromaticity uniformity through a single measurement. It boasts ultra-high sensitivity and signal-to-noise ratio, as well as excellent repeatability.
Typical application scenarios
The instrument accurately matches the CIE 1931 color matching functions, allowing for the measurement of two-dimensional luminance and chromaticity. CXC-2120 is widely used for measuring the uniformity of image luminance and chromaticity, and is particularly suitable for applications such as automotive ambient lighting, backlight characters, projection displays, emblem lights, grille lights, and tail lights. Its advantages include high imaging quality, high accuracy, fast measurement speed, and ease of operation. It is not only suitable for laboratory measurement, but also for optical quality control on the production line.
Main characteristics
Single sampling measurement for obtaining luminance, chromaticity, and their uniformity at each point.
The instrument uses a scientific-grade cooled detector array, and the spectral response of the detector is highly matched to the human eye's three-stimulus value curve. This enables the rapid and accurate acquisition of luminance and chromaticity data at each point in the field of view, as well as the analysis of uniformity data.
Low luminance and high repeatability measurements.
With a high-quality cooled detector and professional noise circuit design, high measurement repeatability and stability can be achieved even at low luminance levels (such as 0.001 cd/m2).
Wide linear dynamic range and high measurement accuracy.
3.The instrument uses a scientific-grade detector array with good linearity and high linear dynamic range (HDR) technology, enabling measurement linearity of less than 1% over seven orders of magnitude.
Advanced artificial intelligence algorithms to assist with various measurement analyses.
The instrument includes multiple algorithms, such as intelligent image recognition, that can be customized for various measurement objects (such as ambient lighting, backlight characters, projection displays, HUD displays, screens, logo lights, grille lights, and headlights), depending on user requirements for luminance and chromaticity uniformity analysis.
Stable communication and strong anti-interference ability.
The instrument supports Gigabit Ethernet communication and has excellent electromagnetic compatibility and anti-interference performance, ensuring reliable long-distance communication even in complex production environments.

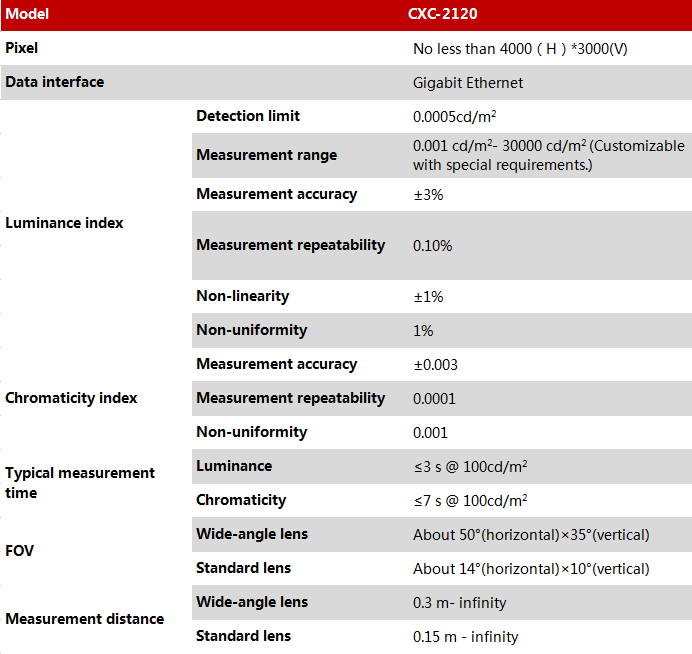

Technical Specifications
