RGO-2000P Robotic Goniophotometer for Plant Lighting
Accurate measurement of PPFD at 10 cm distance.
Typical application scenarios
RGO-2000P proposed a solution based on the plant lighting requirement to measure and evaluate the spatial light distribution performance of plant lighting based on the limitations of far-field measurement and ILMD near field distribution goniophotometer.
Main characteristics
1. High Accuracy
Based on the lighting requirement design of plant lighting, there is no inapplicability and limitation of far-field measurement data for application. The spatial optical performance of plant growth lamp was measured and analyzed based on the high accuracy spectroradiometer with EVERFINE patented technology.
2. Wide Measurement Range
The minimum test distance can be as low as 10 cm, which fully meets the optical performance evaluation requirements of plant lamps.
3. Powerful Software
The spectral photon distribution (350~800 nm) and spectral power distribution (350~800 nm) are measured, as well as the light quantum proportion of the specified band.

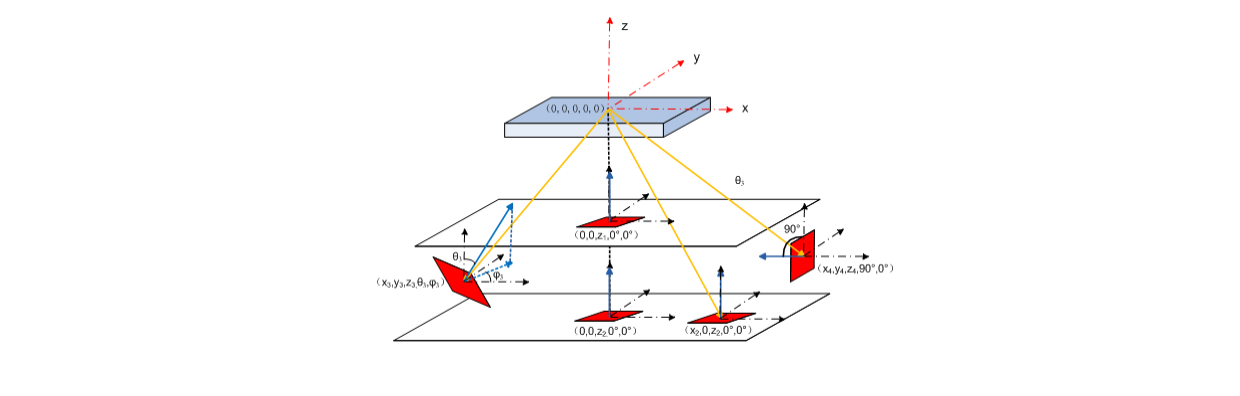

Spectral irradiance Ee(λ,x,y,z,θ,φ) is measured at different distances in space and in different directions.

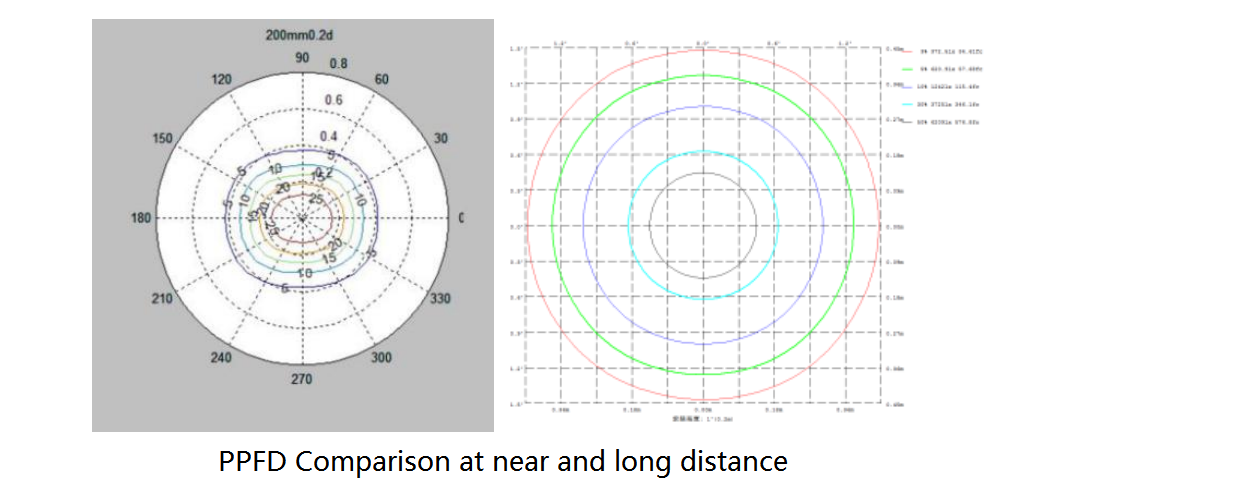

PPFD and PPFD curves at different distances in space are obtained.
PPFD and PPFD curves at different angle in space are obtained.

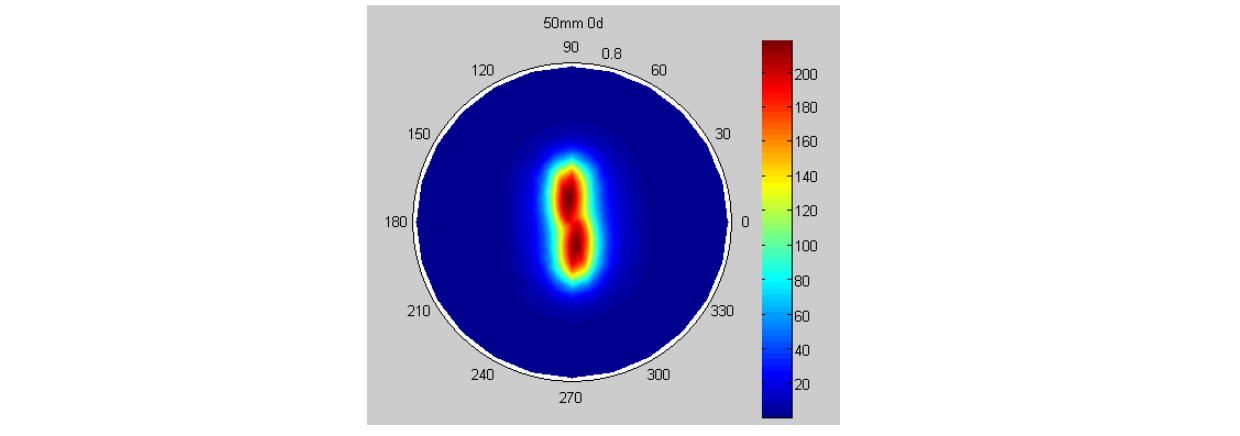

The spatial spectral distribution characteristics of plant lighting were measured and analyzed.
The total photon flux and total radiant flux of the plant light lamp were measured.

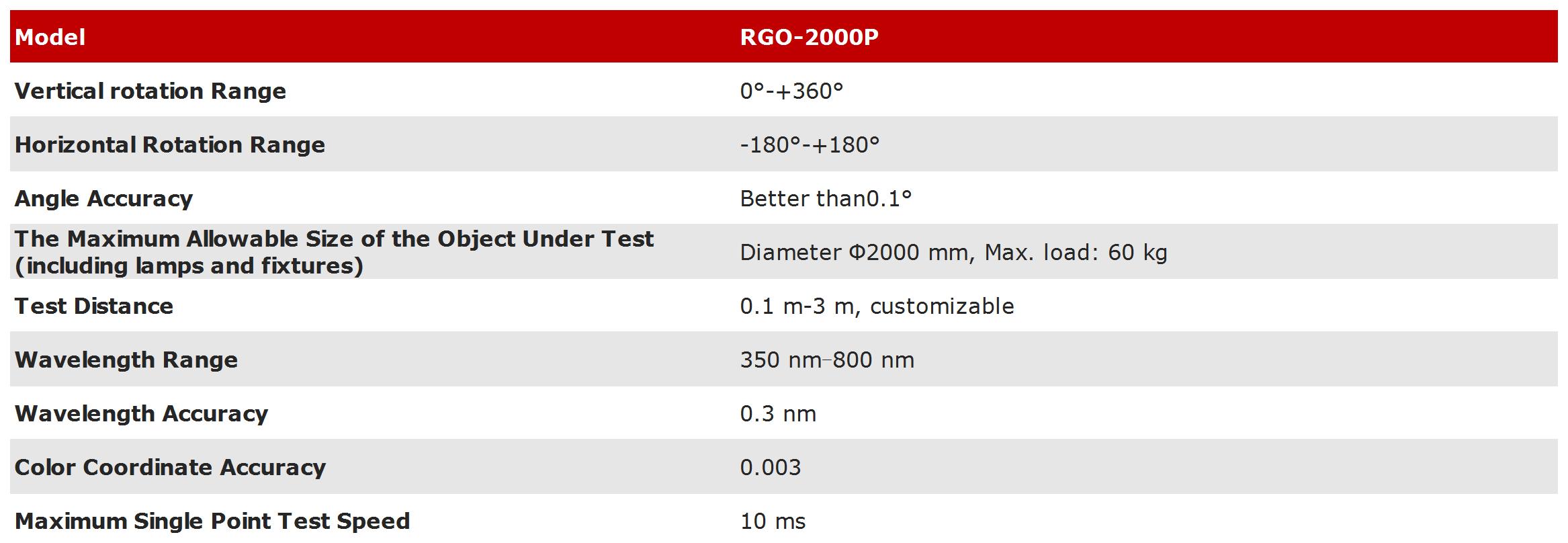

Technical Specifications
