The mobile phone supply chain measurement solution covers the luminance and chromaticity measurement solutions of small and medium-sized 3C electronic products such as mobile phones, watches, pads, tablets, etc. Measurable items include luminance, chromaticity, uniformity, viewing angle characteristics, and haze of display materials and other optical properties. Our solutions are not only suitable for laboratory R&D measurement, but also can be applied to optical quality control in the production line to meet the testing requirements of international and domestic standards such as IDMS, IEC, GB, etc.

Test of Optical Properties of Small and Medium-sized Mobile Phone Screens

DMS-1500 Optical Property Test System is mainly used for the luminance, chromaticity, uniformity, color gamut, viewing angle and other photometric&colorimetric&electrical properties  measurements of small and medium-sized displays such as watches, mobile phones, pads, etc. With instantaneous characteristics test device, DMS-1500  can also achieve flicker characteristics measurement, preheating characteristics measurement, response time measurement and other functions. With the ambient light module, DMS-1500 can realize the measurement functions of ambient light contrast, ambient light color gamut, and viewing angle characteristics under ambient light, etc. DMS-1500 has comprehensive measurement functions, high measurement accuracy, and high degree of automation, which can meet the requirements of relevant international and domestic standards.

推荐产品

DMS-1500E Optical Property Test System

DMS-1500H Optical Property Test System

Luminance, Chromaticity and Uniformity Test of Mobile Phone Display

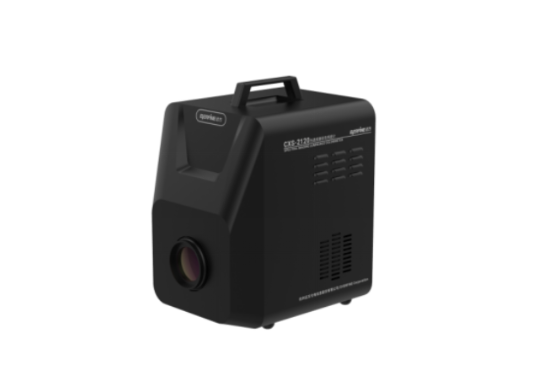

CXC series Imaging Luminance Colorimeter accurately matches the color matching function of CIE1931, through one sampling measurement can obtain the luminance, chromaticity and uniformity information of each point in the field of view. CXC series provide conveniently&accuracy measurement, fast measurement speed and great stability&repeatability. Instruments can be used for the measurement of watches, mobile phones, tablets, small size watch characters, mobile phone LOGO characters, etc. CXC series are not only suitable for laboratory measurement, but also can be applied to optical quality control in the production line.

推荐产品

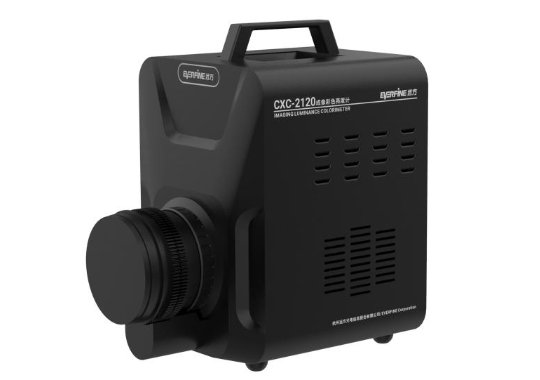

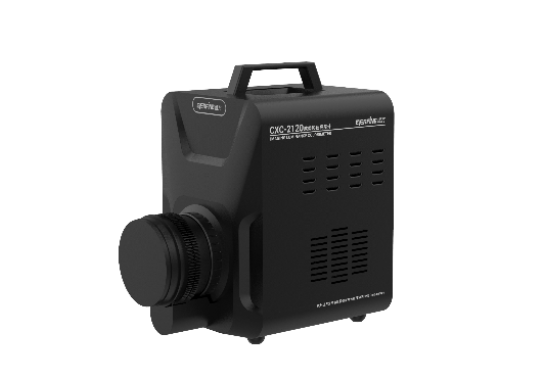

CXC-2120 Imaging Luminance Colorimeter

Luminance, Chromaticity and Spectral Performance Test of Mobile Phone Display

SRC series is a high-precision spectral radiance colorimeter developed by EVERFINE’s 30 years technology reserve of optical radiation measurement. The insturment combined with precision optical design and high-performance electronic signal processing technology. SRC series integrates spectrum, luminance, and chromaticity measurement functions, and maintains excellent accuracy and fast measurement speed even at low luminance. It can be used for the measurement of watches, mobile phones, tablets, small-size watch characters, mobile phone LOGO characters, etc.

推荐产品

SRC-200 Spectral Radiance Colorimeter

SRC-600 Spectral Radiance Colorimeter

GAMMA and Flicker Performance Test of Mobile Phone Display

DCA series display color analyzer is based on EVERFINE’s decades technology reserve of photometric and colorimetric measurement. Instruments provide. XYZ three channel detector, their spectral sensitivity curve are strictly match CIE 1931 tristimulus curve and reached spectral level measurement. DCA series mainly used for luminance, chromaticity, GAMMA and flicker measurements of phones, tablet, etc. It is not only suitable for field measurement, but also meets the production line measurement requirements with its excellent repeatability and stability.

推荐产品

DCA-510 Display Color Analyzer

DCA-527 Display Color Analyzer

Mobile Phone Flash Optical Performance Analysis System

MFL is mainly used for high-precision measurement of flash characteristic curve, peak illumination, flash index, and finite flash duration. The professional analysis software obtains the illumination uniformity and chromaticity in the whole illuminated plane, which is used to evaluate the relevant optical characteristics of the mobile phone flash and camera flash.

Mobile Phone Ambient Light Sensor with a Spectral Adjustable Luminance Source

TLS Spectra Tunable Light Source simulates all kinds of typical indoor and outdoor light sources, and realizes the automatic adjustment of illumination in a large dynamic range. It is suitable for the correction measurement of ambient light sensor and infrared proximity sensor, as well as the dynamic range, flat field, luminance, chromaticity and other characteristics of the imaging luminance meter.

推荐产品

TLS-75 Spectra Tunable Light Source

Performance Test of Spectral & Radiation Angle Distribution of VCSEL Components for Mobile Phones

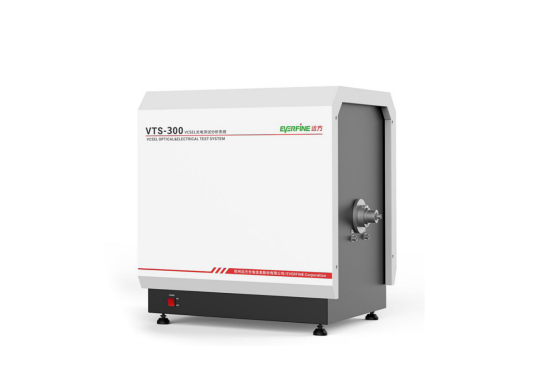

VTS/VGS can be used to measure and analyze the VCSEL spectral curve, radiant power, current, voltage and other performance of mobile phones and watches. It is widely applicable to VCSEL products with different power and different angles. It can also analyze the photoelectric conversion efficiency of devices, slope efficiency, etc., and can also measure the spectrum, space radiant power, FOV and human eye safety level. It is suitable for VCSEL product quality inspection, R & D laboratory analysis and other high demand test occasions.

推荐产品

VGS-200 VCSEL Gonioradiometer System

VTS-200 VCSEL Optical&Electrical Test System

Test Of Photometric& Colorimetric&Electrical Performance of LEDs and Backlight Units for Displays

PCE-2000B Opto-Electronic Measurement System can be used for the measurement of photometric& colorimetric&electrical properties of flat plate backlight, small and medium-sized LCD backlight and mini backlight, measureable items include luminous flux, luminous efficiency, relative spectral power distribution, chromaticity coordinates, color temperature, dominant wavelength, peak wavelength, FWHM, color rendering index, color purity, red ratio, SDCM, forward voltage, forward current, reverse voltage, reverse current, light intensity, beam angle, three-dimensional light intensity distribution map, luminous intensity with forward current change characteristic curve, etc.

LED626/620 Goniophotometer for LEDs

The Color&Transmittance&Haze Characteristics of the Display Material Test

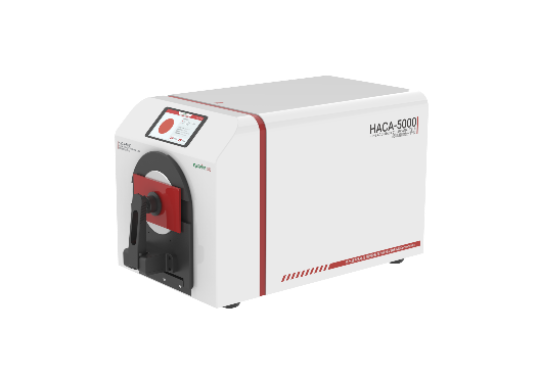

HACA series high accuracy color analyzer adopts advanced spectral measurement patent technology, which can measure and generate the spectral reflectance curve, diffuse reflectance, spectral transmittance curve, color, color difference and other parameters of glass, product shell, optical film and other materials, and meet the high-precision measurement requirements of material transmittance and color for R&D and QA.

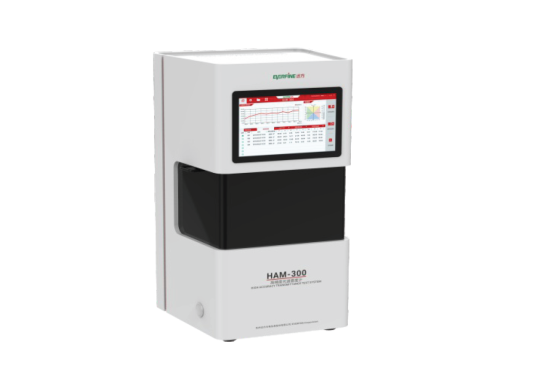

HAM-300 haze meter is mainly used for the measurement of haze, total light transmittance, scattering transmittance and spectral transmission performance of plastics, films, glass or LCD panels, etc., with a spectral band range of 380-1000nm, suitable for the testing needs of large and small samples.

推荐产品

HACA-3800 High Accuracy Color Analyzer

HAM-300 High Accuracy Spectral Haze Meter

Mobile Phone/Flat Panel Display Blue Light Hazard Test

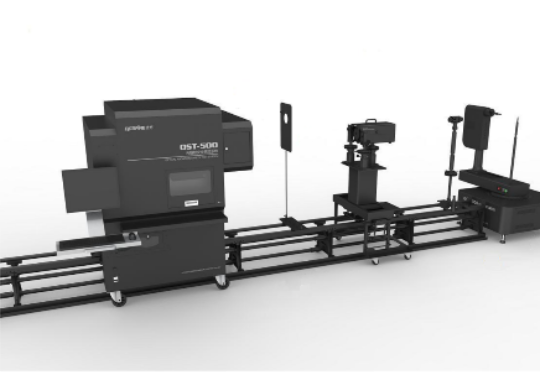

Optical radiation safety test system is mainly used to evaluate light sources, displays, lasers photochemical ultraviolet hazards, eye near-ultraviolet hazards, retinal blue light hazards and other photobiological safety hazards, the system can automatically measure the photobiological hazard value of the display screen and classify the safety level, according to IEC62471, IEC/TR62778 and other standards.

OST-500 Optical Radiation Test System

Testing of The Transmission and Reflection Spatial Distribution Characteristics of Display Materials

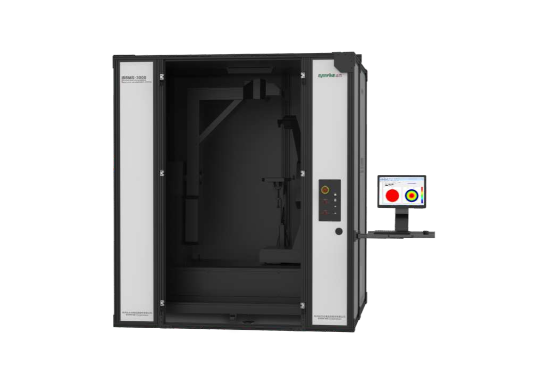

BBMS-3000 system can comprehensively analyze and measure the reflection and transmission characteristics of the surface of the display material, the measurable parameters include bidirectional transmission distribution (BTDF), bidirectional reflection distribution (BRDF), reflectance distribution, transmittance distribution, total reflection (TIR), total scattering (TIS), etc., the system can export standard files to a variety of optical software for auxiliary optical materials or systems.

推荐产品

BBMS-3000 BRDF/BTDF Measurement System
