LDAS-200I Vehicle Lighting Dynamic Assessment System
Typical application scenarios

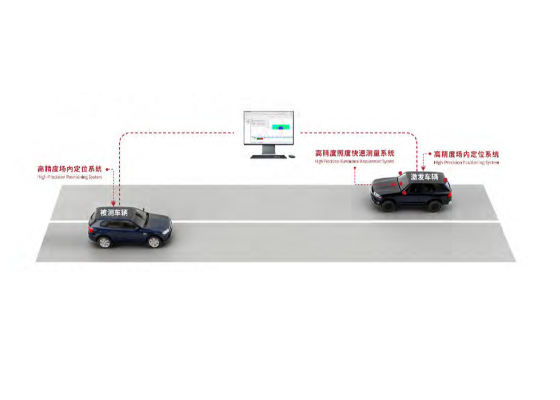

LDAS‑200I is a dedicated high‑precision analysis and measurement system designed for dynamic evaluation of road lighting performance of full‑vehicle headlamps. It integrates a high‑accuracy on‑site positioning system (optional), a high‑speed illuminance measurement system, and AI‑based optical control and analysis software, enabling dynamic optical testing of adaptive driving beam (ADB) systems for full vehicles. The system complies with major international and domestic vehicle lighting standards including IIHS, C‑IASI, FMVSS‑108, and ECE R48.
Main characteristics
1.Equipped with a fast illuminance measurement system supporting multi‑point high‑precision placement, real‑time data acquisition, and positioning‑and‑time‑synchronized logging to capture illuminance variations with distance and time.
2.Enables comprehensive testing of the full‑vehicle Adaptive Driving Beam (ADB) system, including activation time, activation response capability, masking accuracy, glare, and other key parameters.
3.The AI‑based optical control and analysis software supports testing and evaluation in accordance with major domestic and international standards such as IIHS, C‑IASI, C‑NCAP, FMVSS‑108, and ECE R48.
4.Optionally integrates the FPS (Field Positioning System) high‑precision positioning module, providing real‑time information on longitudinal and lateral positions, travel distance, pitch angle, and speed of both the test vehicle and the target vehicle.
