Photometric&Colorimetric&Electrical Measurement for Light Sources and Luminaires

系统简介

EVERFINE provides professional test systems for traditional luminaries and LED&lighting products; solutions include photometric&colorimetric&electrical measurement systems, light distribution measurement system, aging-life test systems, optical radiation(IEC62471 standard) test system, zero-voltage source start up time test system, light flickering test system, EMC test system, etc.

LED Modules and Luminaires Photometric&Colorimetric&Electrical Measurement Systems

For traditional luminaries and LED&Lighting products, EVERFINE provides various solutions to test these characters: corresponding spectral power distribution, chromaticity coordinates, CCT, CRI, SDCM, peak wavelength, dominant wavelength, average wavelength, purity, color ratio, FWHM, luminous flux, radiant power, voltage, current, power, power factor, harmonic, etc. Systems comply with the CIE’s luminance and chromaticity standards, automatically generate line charts of LED products and light source's start time analysis which include start time luminous flux/power/voltage/current - time curves. To fulfill the quick selection and test processes of LED production lines, systems also provide voltage/current/luminance flux/wavelength classification and white LEDs chromaticity distinction functions.

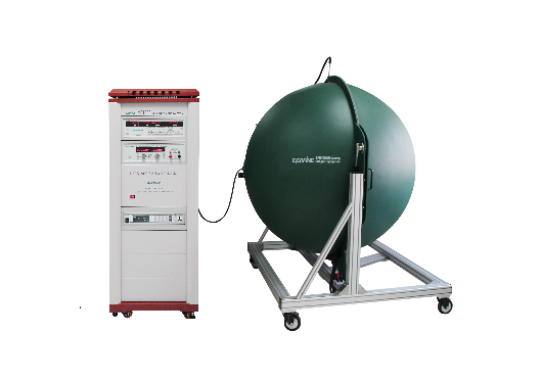

PCE Series Opto-Electric Measurement System

LED Modules and Luminaires Light Distribution Measurement Systems

For LED modules and LED&Luminaires, EVERFINE provides various solutions to test these characters: total luminous flux, zonal luminous flux, spatial luminous intensity distribution, luminous intensity data, beam angle, iso-illuminance diagrams, isocandela diagrams, coefficient of utilization, luminance limitation curves, glare rating, available average illuminance curve (AAI curve), spatial color distribution, spatial luminance distribution, luminous area, colorimetric quantities in various spatial directions, and spatial color non-uniformity. Monitor and analysis software are comply with various international standards, which can export data as IESNA(95, 2001), EULUMDAT, CIBSE(TM14), CIE, etc, formats.

GO-2000 Goniophotometer

LED Modules and Luminaires Aging-Life Test Systems

EVERFINE’s aging-life test systems are specifically designed for LED&Lighting products and LED array, to measure and analysis the normal/accelerated aging, lumen maintenance, color drift characteristic and lifetime. Systems also equipped with lifetime evaluation and online&real-time photometric and electric measurement functions, they can produce optical&electrical&colorimetric parameters versus temperature variation curves and fully comply with various international standards including IESNA LM-82-12, IESNA LM-82-14, IES TM-28-14,ENERGY STAR, etc.

LT-500A Aging-Life Test system for LED Luminaires

Luminaries and LED Spectral Radiation Safety Test Systems

EVERFINE’s safety test systems are specially designed for measuring spectral power distribution, spectral irradiance, spectral radiance, hazard efficacy of luminous radiation K, UV index, size of the apparent source, CCT, color coordinate, CRI, SDCM, etc(IEC/EN 62471 tests). According to hazard level, systems can provide photobiological hazard levels classification for actinic UV hazard for eyes and skin, near UV hazard for eyes, retinal blue light hazard, retinal thermal hazard, etc. Systems also comply with various international standards, including IEC/EN 62471/CIE S009, IEC/TR 62778, GB/T 20145, IEC/EN 60598, IEC/EN 60335, GB/T30117, GB7000.1, 2009/125/EC, etc.

OST-500 Optical Radiation Test System

Light Flicker Test Systems

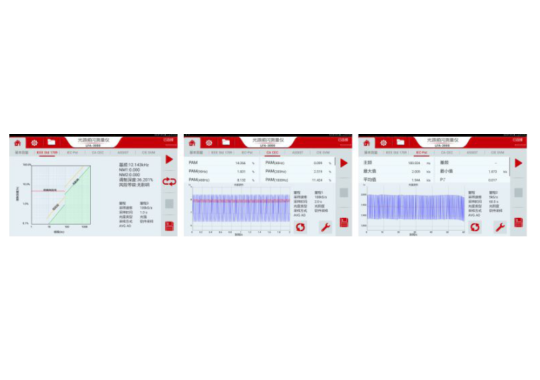

EVERFINE’s flicker test systems integrate with the latest international standards and technical reports which can provide all kinds of flicker index and automatically classify the risk level of flickering according to various international standards. Measurable items include time domain and frequency domain analysis chart of light flickering, fundamental frequency, percent of flicker(PF), flicker index(FI), modulation depth(MD), the percentage of modulation(CEC standard), Pst(IEC 61547), Mp(ASSIST method), SVM(CIE,TC).

推荐产品

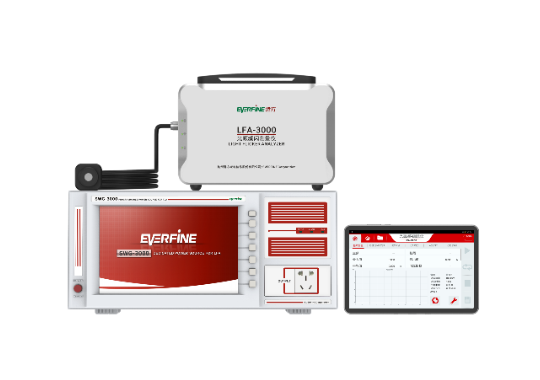

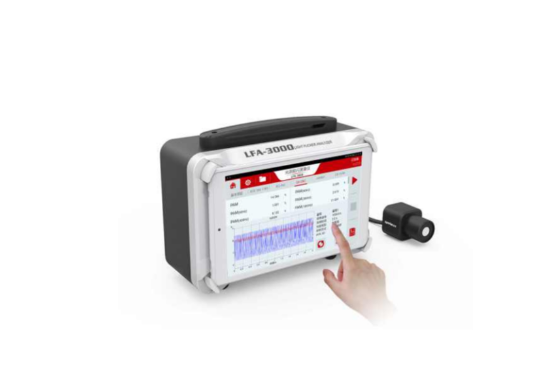

LFA-3000 Light Flickering Analyzer

Source Start Up Time Test Systems

EVERFINE’s start up time test systems are deigned to test the starting time and run-up time of LED products, luminaries, CFL, etc, meet the requirements of European regulation 1194/2021, international standards IEC 60969  ‘Self-ballasted Lamps for General Lighting Services—Performance Requirements’, etc.

EMC Test

Based on the IEC and other LED standards, EVERFINE’s EMC test systems are designed to provide EMC tests for LED drive power supplies, LED modules, LED products, etc. Solutions include ESD(Electrostatic discharge) immunity test, EFT(Electrical Fast Transient) immunity test, surge immunity test, voltage dip immunity test, ringing wave immunity test, etc.

推荐产品

EMS61000-2A ESD Generator

EMS61000-4A Electrical Intelligent Transient Generator

EMS61000-5A Surge Generator

EMS61000-11K Voltage Dips and Interruptions Generator
