SRC-600 Spectral Radiance Colorimeter
SRC-600 Spectral Radiance Colorimeter combines spectral, luminance, and color measurement functions, maintaining excellent accuracy and measurement speed even in low light conditions.
Typical application scenarios
SRC-600 Spectral Radiance Colorimeter is a high-precision spectral colorimeter launched by EVERFINE based on nearly 30 years of optical radiation measurement technology, combined with precision optical design and high-performance electronic signal processing technology. It integrates spectral, luminance, and chromatic measurement functions, achieving accurate absolute measurement of the light color of the measured products. It is widely used in the development, quality inspection, and testing of various atmosphere lamps, light guide strips, and other products.
Main characteristics
1. Combines spectral, luminance, and chromatic measurement functions
SRC-600 Spectral Color Luminance Meter can measure parameters including luminance, relative spectral power distribution, color coordinates, correlated color temperature, color rendering index, etc., covering the light and color parameters of the measured object, truly achieving one machine with multiple uses.
2. Ultra-wide measurement range
Without attenuation plates, the luminance measurement range is 0.0005cd/m2～600,000cd/m2, and it can achieve an ultra-wide range of 10E8 without attenuation plates, meeting the requirements of high-contrast measurement.
3. High measurement speed, high accuracy, and high resolution
It uses a constant temperature cooling array detector, which eliminates V(λ) mismatch errors and has minimal stray light interference, providing a guarantee for high-precision measurement. At the same time, the pixel cooling array detector provides a resolution of 0.6nm/pixel and millisecond-level measurement speed.
4. Multiple field of view angle switching, extremely wide application range
According to different application objects, different optical measurement angles of 1°, 0.2°, and 0.1°can be selected, with multiple field of view angle switching. It is suitable for the measurement of small products such as atmosphere lamps, backlit characters, instrument panels, and logo lights, as well as large-sized luminous bodies such as vehicle displays.
5. WIFI remote operation testing
Wireless WIFI remote communication facilitates remote measurement and data transmission. When using WIFI remote communication, it can be controlled remotely by a PC.

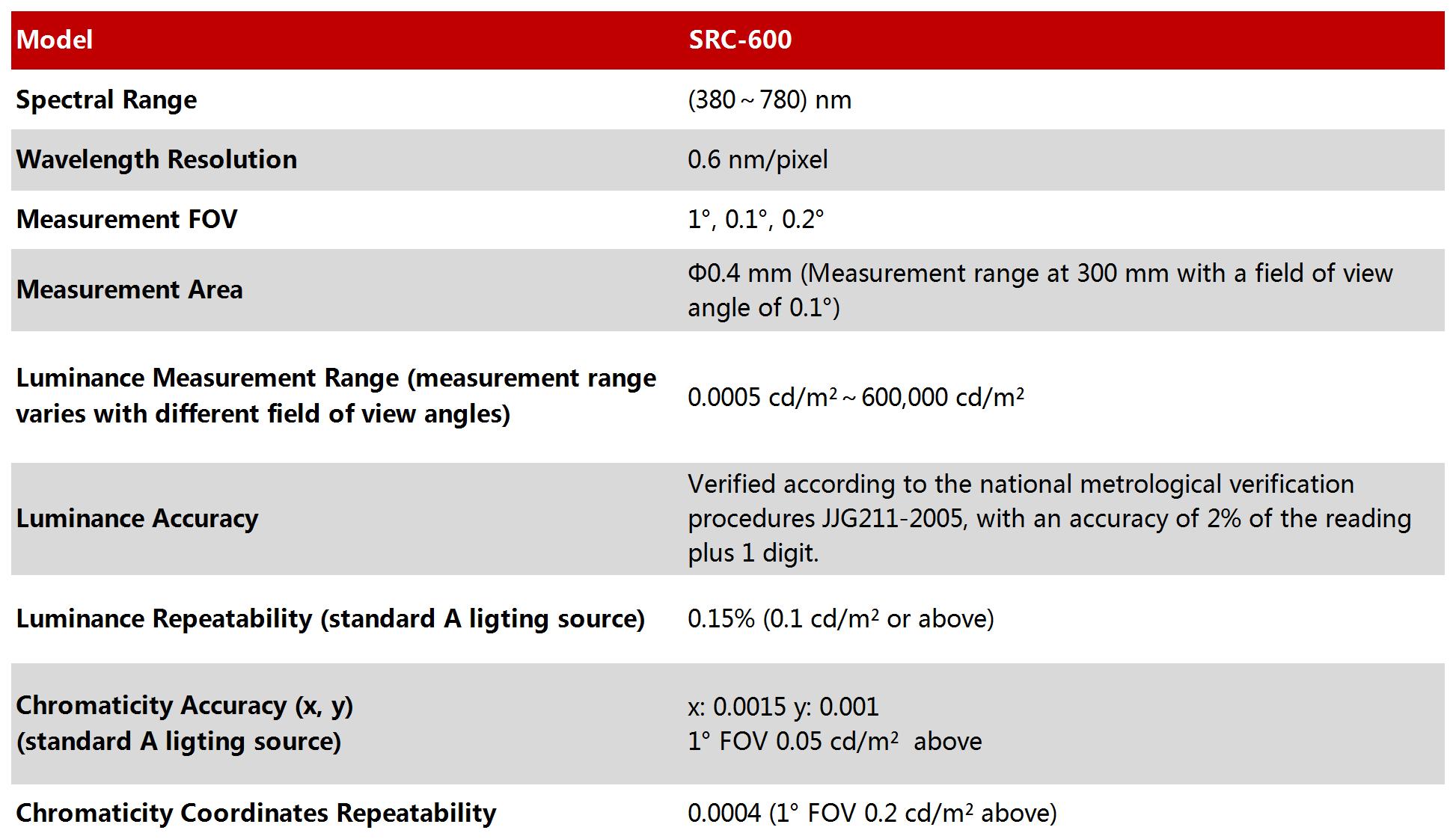

Technical Specifications
