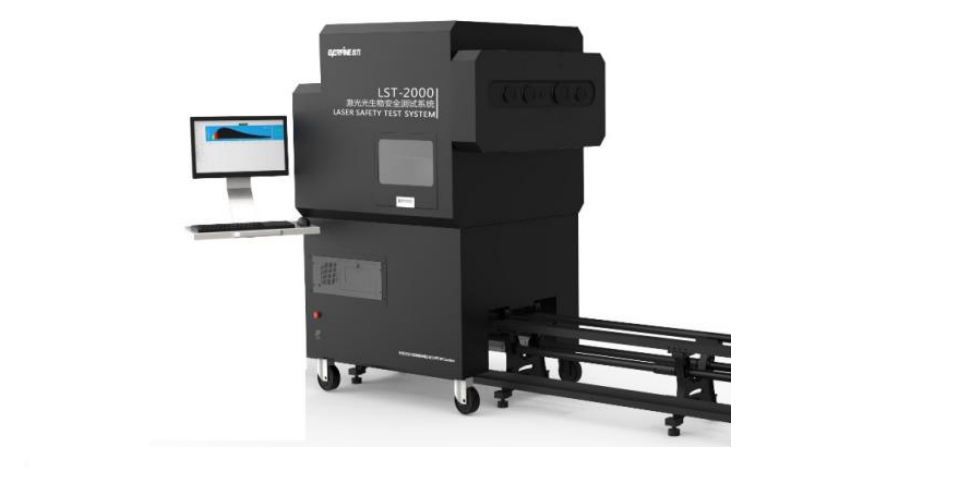

LST-2000 Laser Safety Test System
Suitable for various continuous and pulsed light sources
Typical application scenarios
The system can measure the spectral power distribution, radiant power, radiant energy, apparent light source size, pulse energy and other parameters of the laser light source, and classify the laser light source according to the standard IEC 60825.1. Because laser measurement involves more condition parameters, limit calculation and judgment process is complex, so this system adopts systematic design, the measurement complexity is simplified, the hardware adopts componentization module, users only need to follow the software prompts, carry out the corresponding steps of operation can accurately measure the effective radiation value under the corresponding conditions. The software calculates the relevant reachable emission limits and automatically classifies the laser product's safety level.
Main characteristics
1. High Level Automation
Different from patchwork measuring instruments, this system can realize systematic laser radiate power/energy measurement according to standards, and the safety level is evaluated by software.
2. Superior Detector Performance
Compared with thermopile detector, our detector has faster response and higher accuracy.
3. Polarization Error Free
The laser power meter is not sensitive to the incident direction and does not produce polarization error, which effectively improves the accuracy of the experimental results.
4. Suitable for Different Size of Light Spot
It can effectively collect the beam of various light spot sizes, and is not affected by the beam divergence angle.
5. Integrated Design
The unique test system and accurate optical rail integrated design greatly improves the system test efficiency.
6. Sufficient Patents
The system contains a number of EVERFINE patented technology so as to lead the level in the world, relevant technical papers are also used by CIE, the whole system design is good, beautiful and generous.
7. Adaptability of Various Standards
The standard devices used are directly traceable to the USA NIST and China NIM, and refer to IEC standards, CIE standards and Chinese national standards.
8. Stable, Reliable and Secure
This system has complete independent intellectual property rights, different from other suppliers patchwork system, the whole set of equipment is good, beautiful, stable and reliable quality as well as guaranteed after-sales service.

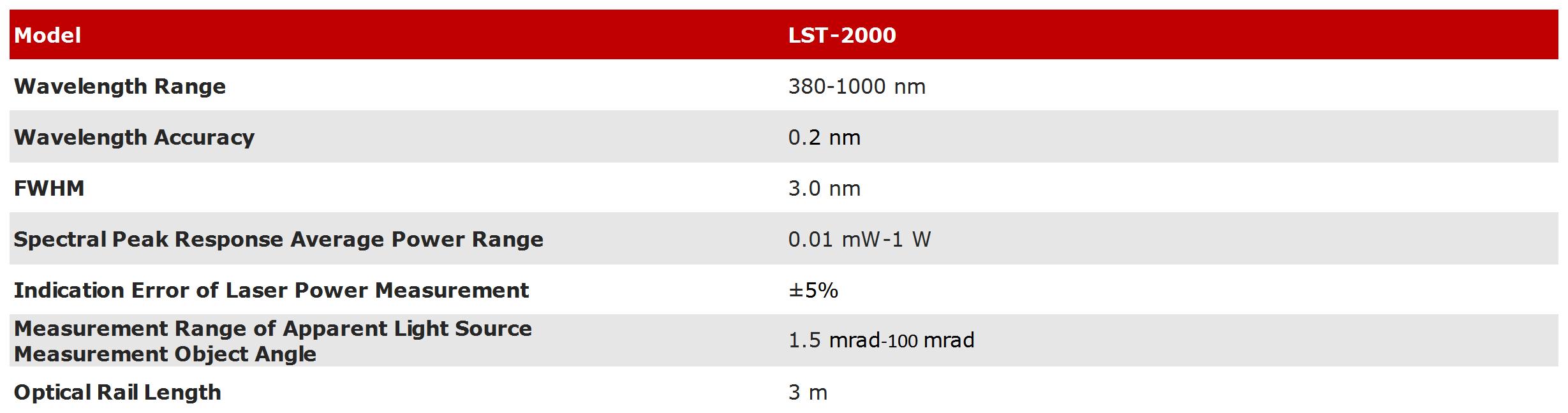

Technical Specifications
