AMET-2000 Medical Endoscope Automatic Test System
Endoscope Image Quality and Lighting Performance Overall Solution
Typical application scenarios
AMET-2000 Medical Endoscope Automatic Test System is designed for the comprehensive optical performance test of various medical optical endoscopes and electronic endoscopes. It has the characteristics of high precision, automation and intelligence. The system automatically measures the field of view, visual direction, image quality, light efficiency and other optical properties of the endoscope lighting system and imaging system according to the
preset process, which is suitable for the research and development, quality inspection and production line measurement of medical rigid endoscope, electronic endoscope and camera system
Main characteristics
1. Friendly UI Interaction, Automatic and Intelligent Testing
Machine vision auxiliary alignment and fine-tuning knob design, according to the prompt simple steps of operation, can easily achieve the endoscope sample installation and alignment; Automatic measurement: equipped with target automatic switching device, automatic precision distance adjustment device, photometric electronic eyepiece simulating human vision (electronic endoscope and camera system using lossless image acquisition), artificial intelligence algorithm and professional measurement and control software, etc. Can realize the automatic switching of the measured items, automatic measurement data acquisition and automatic determination of test results (color reduction, light energy transfer efficiency need to manually replace the eyepiece end tester).
2. High Measurement Speed, High Precision and High Resolution
It is equipped with high accuracy array spectroradiometer, which has the characteristics of high spectral resolution, large dynamic range, high sensitivity and fast measurement speed. Equipped with EVERFINE high-precision luminance detector, with a large linear dynamic range, fast and accurate measurement of sample luminance.
3. Powerful Software, Simple Operation
The powerful software can realize the FOV, visual angle, entry pupil FOV and α value, image quality, unit relative distortion, color resolution and color reduction evaluation, lighting performance, comprehensive light efficiency and other parameters measurement of medical endoscope.
4. Multiple Reference Standards, Complete Measurement Parameters
The system refer to ISO 8600 《Endoscopes-Medical Endoscopes and Endotherapy Devices》and other relative international standards,the actual operation of the endoscope is simulated, and the highly uniform transmission surface light source and specular body input light source are provided to accurately evaluate the optical parameters related to the specular body.

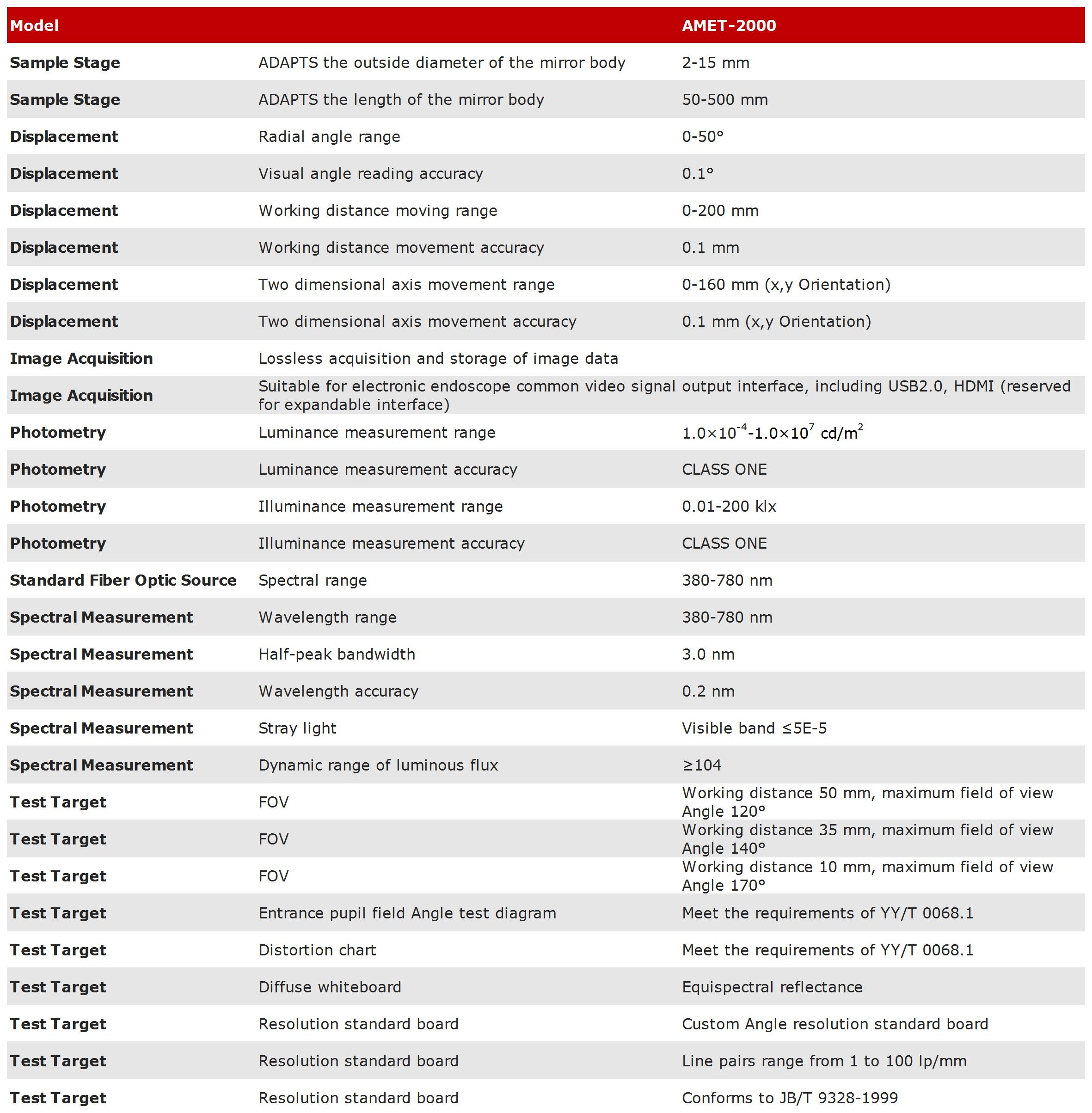

Technical Specifications
